RACE SERIES CAMCHEST KIT

W/ REAPER 594 - Chain Drive (OE Spring Tensioners)

$1,795.95
In stock
7234

RACE SERIES CAMCHEST KIT W/ REAPER 594 - Chain Drive, TC 99-06 Exc. 06 Dyna

  • BULLETPROOF CAMCHESTS!

    NOTE: This camchest kit is the original fitment for mechanical spring tensioners, if looking to upgrade to hydraulic tensioners (recommended) see kit #s 7225, 7225P, 7225ST

    FEULING complete camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.

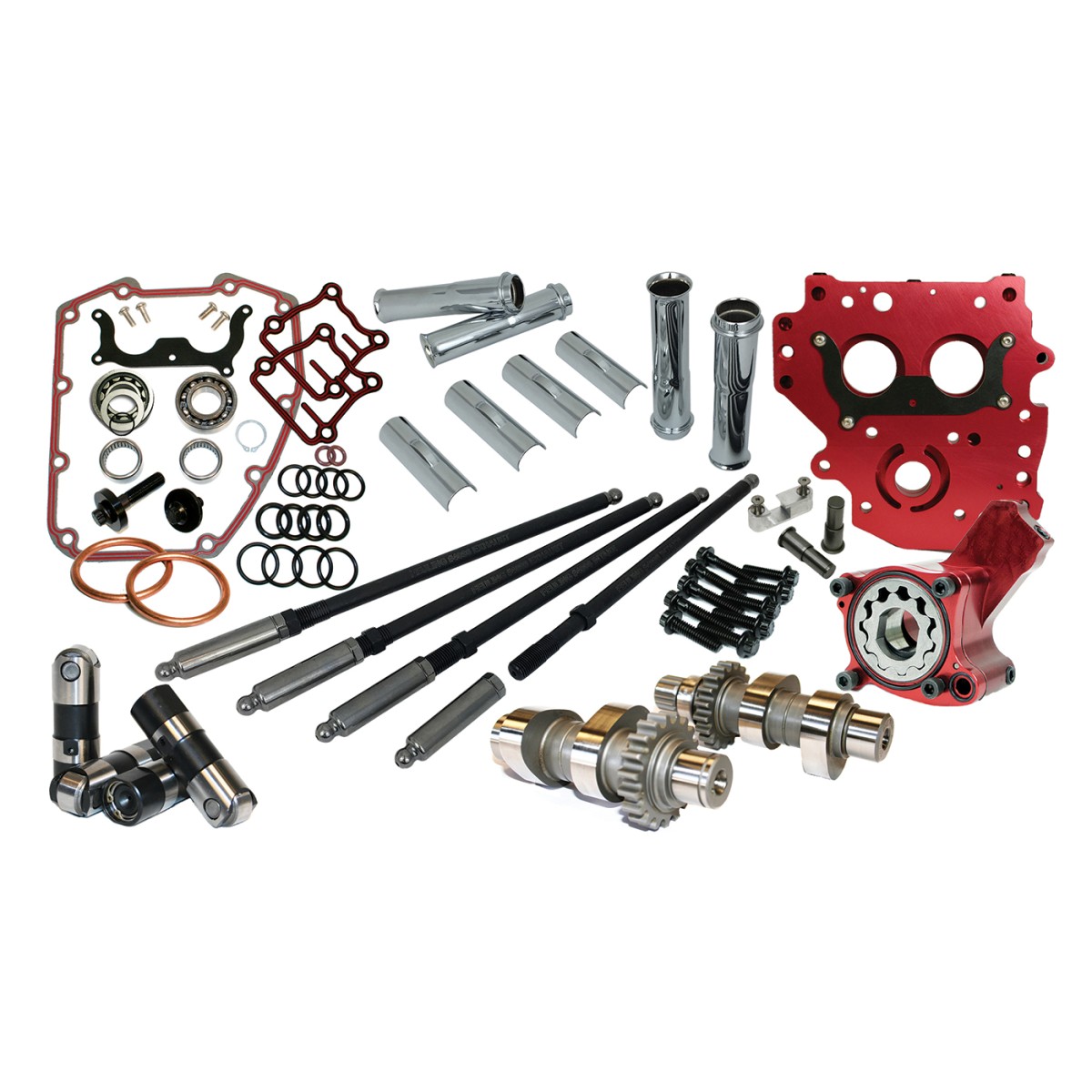

    Complete Camchest Kits include: FEULING high volume Oil pump, high flow Camplate, REAPER Series Camshafts, hydraulic roller Lifters, adjustable Pushrods, Timken Bearings, Gaskets, O-rings, Exhaust gaskets, ARP fasteners, washers, moly paste, Loctite, and hardware.

    Camchest kits are available in FEULING HP+ and RACE SERIES combinations and with gear drive or chain drive REAPER camshafts. Fitments available for 99-17 Twin Cam engines. 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure, quieter and smoother engine operation, eliminate wet sumping, blow by and oily air cleaners.

    594 CAMS - Fiercely performing camshaft for an array of engines sizes, large displacement 103, 110 & 124 engines looking for a superior torque band with excellent horsepower gains in heavy bikes (RPM 2,200 - 6,250.) Smaller high revving displacement 95 style engines in lighter bikes looking to twist the throttle and tap into some horsepower (RPM 2,500 - 6,800). Large displacements respond well to increased compression ratio and smaller displacements will require it. 594 cams require high performance valve springs, pushrods, lifters, carburetor and or throttle body work, performance exhaust, intake and clutch.

    Note:
    1999 model engines using key way camshafts/sprocket will need to purchase new spline style rear cam sprocket separately. Please see part #1093 or #1094.

    DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES


    FITS:

    TC 99-06 Except 06 Dyna, Chain Drive, Includes 594 Reaper Camshafts #1301, Cam Install kit #2058, RACE SERIES Lifters #4050, Quick Install adjustable pushrods #4096, Chrome pushrod tubes #4095, RACE SERIES oil pump #7050, Anodized camplate #8010 and ARP Camplate/Oil Pump Fasteners #8020


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    1301, 2058, 4050, 4095, 4096, 7050, 8010, 8020

    Disclaimer: This is a RACE ONLY part Parts designated as Race Only are for use only on vehicles used for competition racing and are not for use on vehicles registered for use on public roads. Sale and/or installation of Race Only parts in any way inconsistent with this warning is prohibited and may result in enforcement by the U.S EPA under the federal Clean Air Act. RACE ONLY PARTS ARE NOT LEGAL FOR SALE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES. NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EPA POLLUTION CONTROLLED MOTOR VEHICLE.

  • Our Dealers / Distributors Part #
    Drag Specialties 0925-0734
    Parts Canada Development Co 0925-0734
    Parts Europe 0925-0734
