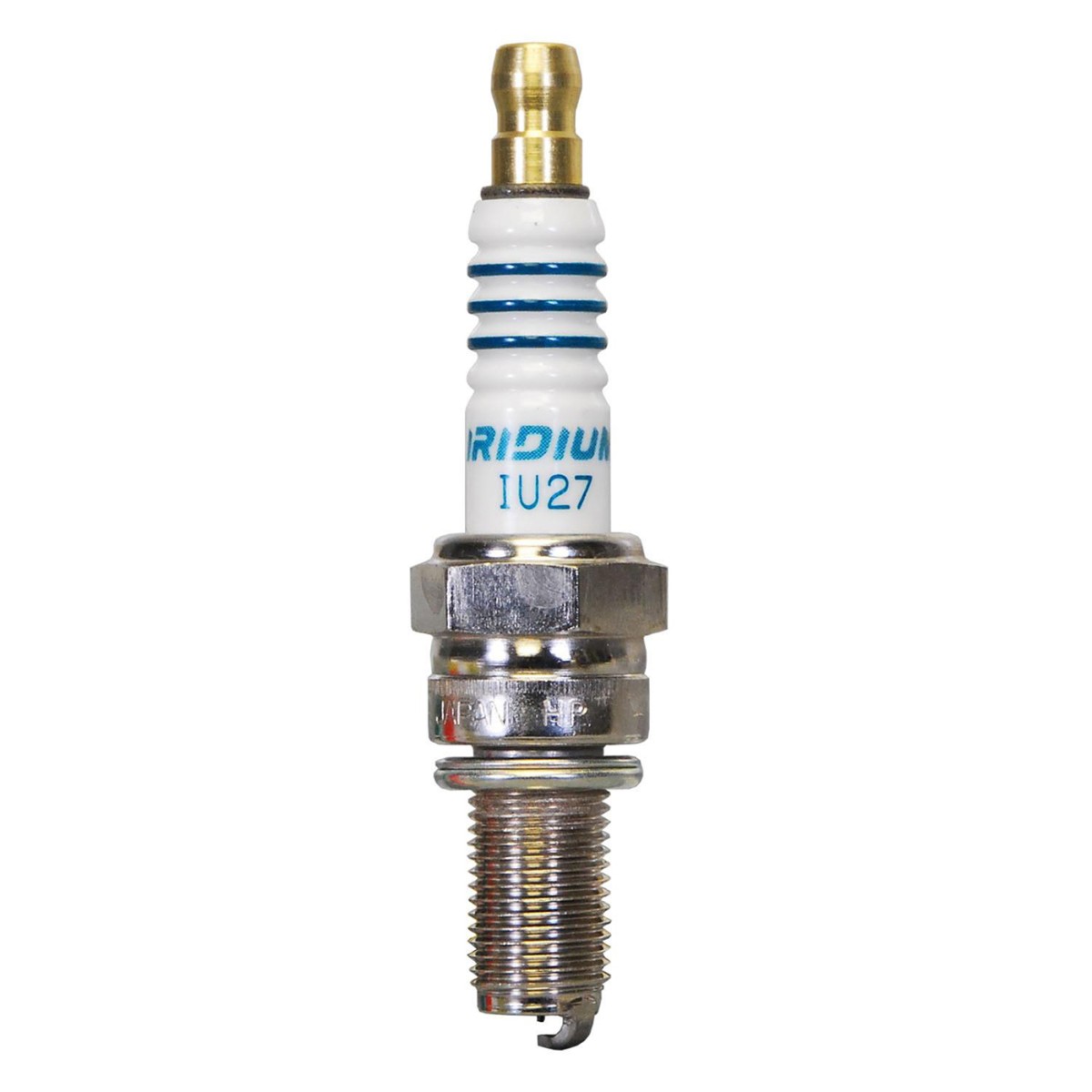

DENSO SINGLE IRIDIUM SPARK PLUGS

Denso Iridium Power spark plugs feature a 0.4mm iridium tipped laser welded fine wire center electrode that reduces required voltage and improves firing performance. Tapered cut U-Groove ground electrode increases ignitability and decreases quenching. Machine rolled threads prevent seizing or cross threading during installation and removal. 100% pre-fired to assure the highest quality possible. Purified alumina powder insulator provides exceptional strength and thermal conductivity. Five rib insulator prevents flashover. Copper-glass seal bonds center electrode and insulator for a gas-tight seal. (Requires purchase of qty. 4)

Thread Diameter 10mm
Thread Pitch 1.0mm
Seat Type Gasket
Reach 19mm (3/4)
Hex Size 5/8 (16mm)
Terminal Type Removable Nut
Overall Height ISO
Gap .035 (0.9mm)
Center Electrode
Material Iridium
Type Fine Wire
Size 0.4mm
Projection Non-Projected
Ground Electrode
Material Nickel
Type U-Groove
Shape Taper Cut
Quantity 1
Specifications
Resistor Yes
Resistor Value 5k Ohm
Heat Range 27
Torque Specs Cast Iron: 7-11 lb. ft. Aluminum: 7-11 lb. ft.

FITS:

M-EIGHT 17-24

COUNTRY OF ORIGIN:

NA

Disclaimer: Qualified Manufacturer Declared Replacement Part means any aftermarket part intended to replace an original equipment emissions related part and which is functionally identical to the original equipment part in all respects which in any way affect emissions (including durability), or a consolidated part, that has been evaluated and declared by the manufacturer to meet this definition and carry this categorization and designation label. This manufacturer has declared in writing that it has documentation, based upon sound engineering judgment, indicating the replacement part does not reduce the effectiveness of any required emission control device and it does not cause the modified vehicle/engine/ equipment to exceed applicable emissions standards for that make/model/year fitment(s) advertised
