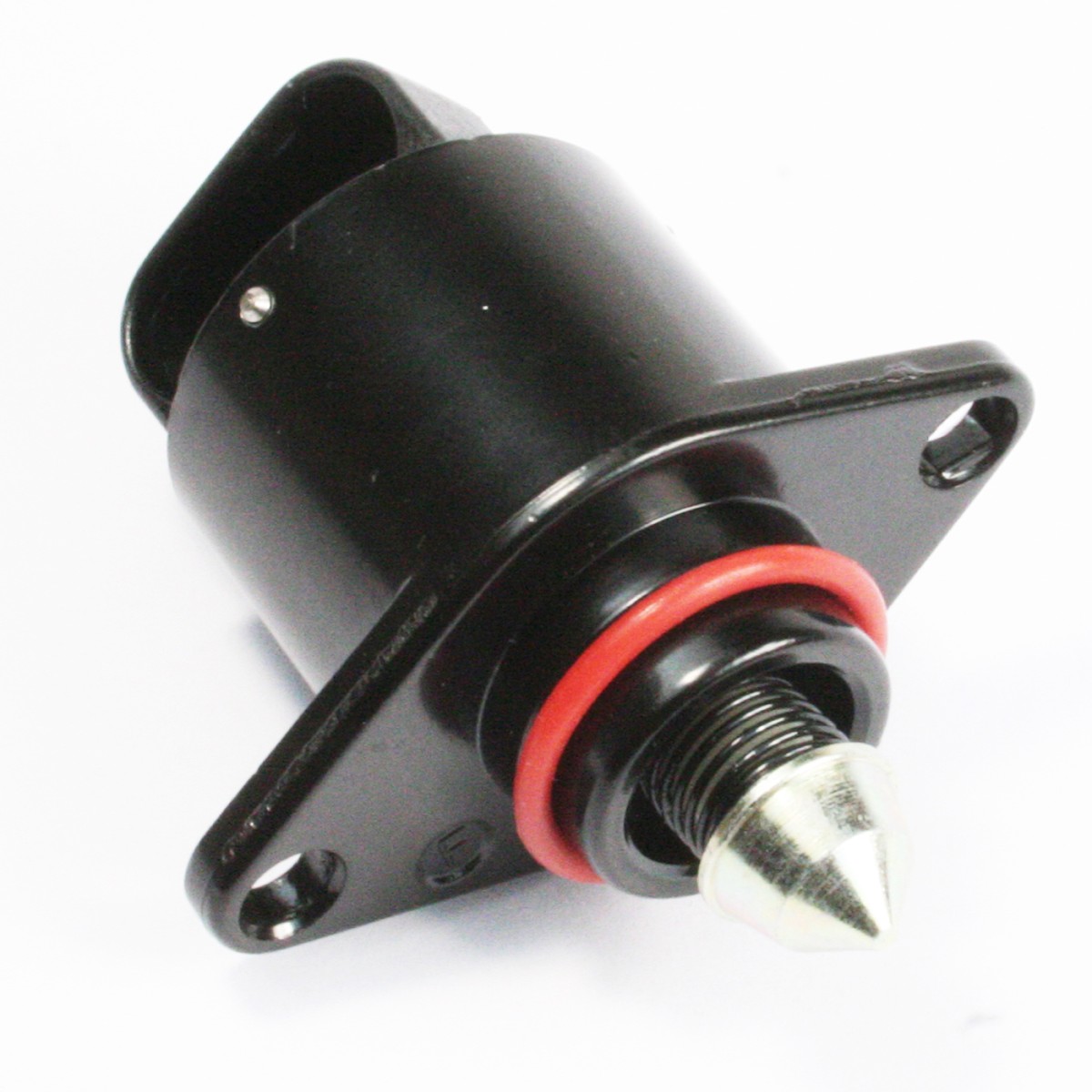

Idle Air Control Valve
An IAC (idle air control) motor is designed to adjust the engine idle RPM speed by opening and closing an air bypass passage inside the throttle body. The cars computer or PCM (powertrain control module) receives information from various sensors and will output signals to adjust the idle air control motor in or out to adjust engine idle speed by controlling engine idle air. An idle air control motor can fail one of two ways, either the motor short circuits and stops working or the motor will develop high resistance and cause the idle air control motor to react slowly, either failure can cause the engine to stall at idle. When a trouble code scan is performed it sometimes wont always detect a failed or weak idle air control motor.

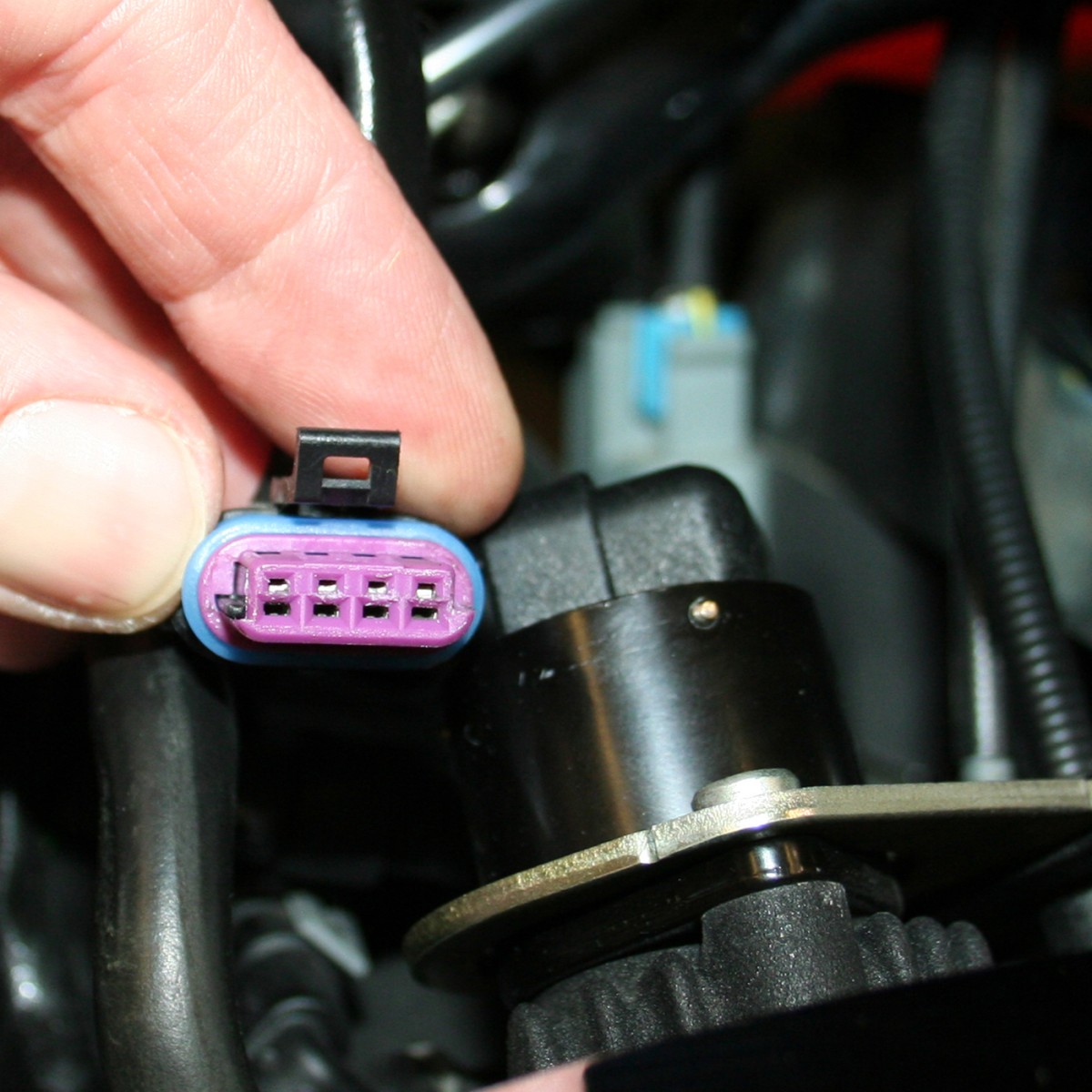

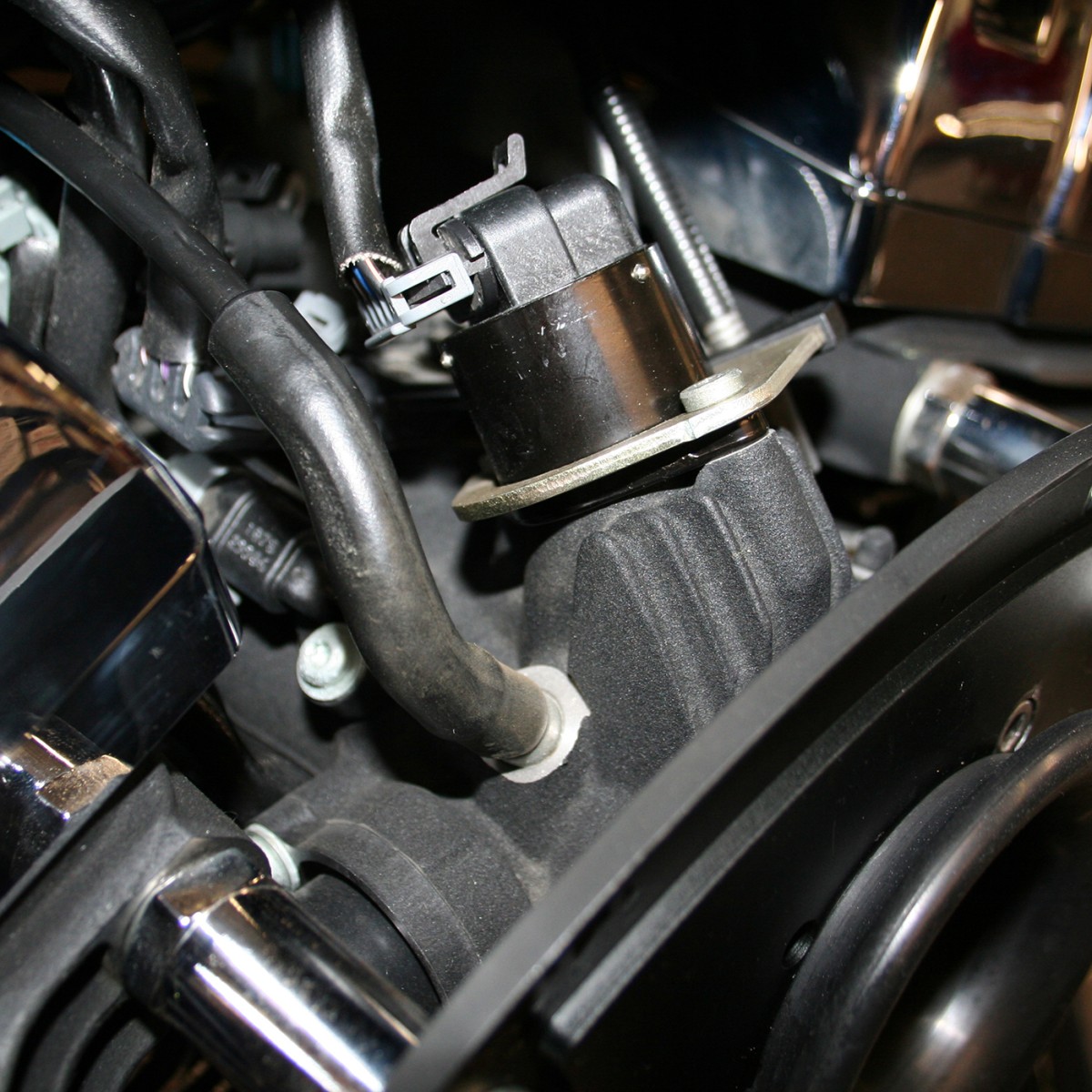

To check the idle air control motor remove the unit, with the wires connected turn the key to the on position without starting the engine, the idle air control should move in or out. If the idle air control motor does nothing it has probably failed, replace it with a new unit and recheck system. Note: while the idle air control motor is removed clean (use aerosol carburetor cleaner) the passages the idle air control uses to control idle air speed, also inspect the idle air control for a build-up on the seating (pointed) end and clean as necessary.
Common Problems
An idle air control motor is highly susceptible to carbon and coking build up; if an idle air control goes too long without cleaning it can cause stalling and poor idle quality. Some cars are designed with a large vacuum transfer hose that connects the intake manifold to the idle air control motor. If a broken or dilapidated these vacuum lines can cause the engine to lose vacuum which will allow the engine to run rough and die. Inspect all engine and accessory vacuum lines to look for missing, torn or dilapidated lines and replace as needed.
To check the idle air control motor remove the unit, with the wires connected turn the ignition key to the on position without starting the engine, the idle air control should move in or out. If the idle air control motor does nothing it has probably failed, replace it with a new unit and recheck system. Note: while the idle air control motor is removed clean (use aerosol carburetor cleaner) the passages the idle air control uses to control idle air speed, also inspect the idle air control for a build-up on the seating (pointed) end and clean as necessary.
Sold individually qty. 1 each
FEULING Sensors meet or exceed OE specifications, assembled in the U.S.A.
Feuling does not recommend tuning beyond stock emissions standards.
DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE
*QUALIFIED MANUFACTURER DECLARED REPLACEMENT PART
FITS:
Fits Cable drive throttle bodies 06-17 Dyna, FXST, FLST and 06-07 FLHT, (Except 16-17 FXDLS, 11-12 FLSTFSE, 13 FXSBSE), replaces OE # 27658-06
COUNTRY OF ORIGIN:
USA
Disclaimer: Qualified Manufacturer Declared Replacement Part means any aftermarket part intended to replace an original equipment emissions related part and which is functionally identical to the original equipment part in all respects which in any way affect emissions (including durability), or a consolidated part, that has been evaluated and declared by the manufacturer to meet this definition and carry this categorization and designation label. This manufacturer has declared in writing that it has documentation, based upon sound engineering judgment, indicating the replacement part does not reduce the effectiveness of any required emission control device and it does not cause the modified vehicle/engine/equipment to exceed applicable emissions standards for that make/model/year fitment(s) advertised.
