RACE SERIES CAMCHEST KIT, CENTER/WATER COOLED M8

W/ REAPER 465 - Chain Drive

$1,895.95
In stock
7265

RACE SERIES CAMCHEST KIT W/ REAPER 465 - Chain Drive, Fits Milwaukee Eight 17-24 (Except VVT) Water/Center Cooled Engines

  • FEULING M-Eight CENTER/WATER COOLED camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.

    RACE SERIES kit
    Quieter and smoother engine operation
    Increase oil pressure, scavenge volume and engine oil flow
    30% more pressure gear volume over stock
    53% more scavenge gear volume over stock
    42% more scavenge volume with port sizing, matched passages and holes to the engine case
    46% more oil volume to the crankshaft and connecting rod bearing
    15-25 degree cooler engine temperatures
    15-30 degree cooler oil temperatures
    10-30 more PSI of oil pressure
    Reduces wet sumping, blow by and oily air cleaners
    Magnets in oil pump to help protect gears and pressure relief valve

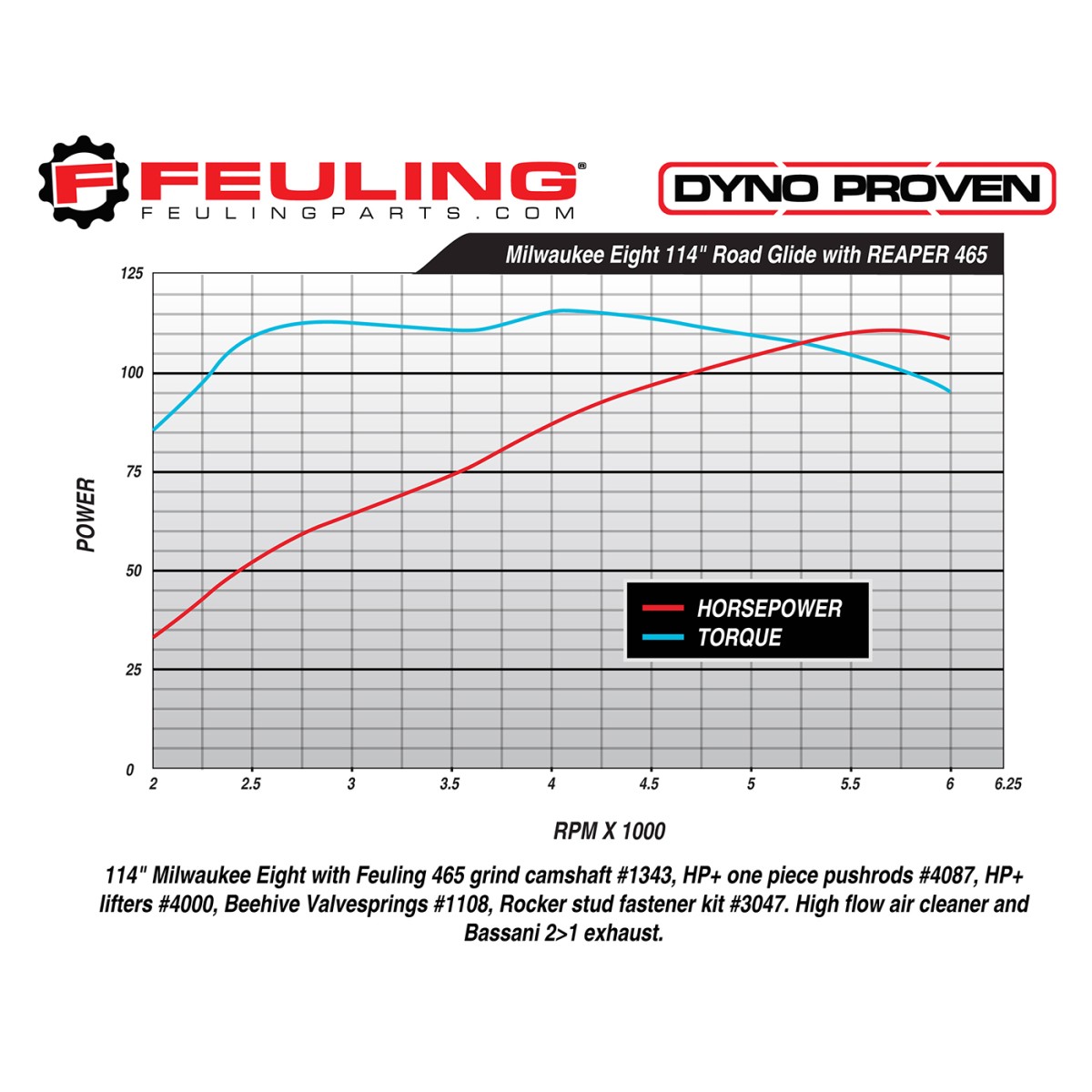

    Test results show 2 HP gain and 2 ft/lbs of TQ gain to the rear wheel on Milwaukee Eight
    NOTE: FEULING test results show a 50% reduction of engine sump oil level.

    Due to the mass call volume & inquires with requests for the M-Eight oil pump back cover O-ring/seal groove, weve added the groove! (5/11/21). Although Feulings in house testing on healthy engines did not show a benefit. The O-ring may have potential benefits in certain circumstances such as engines with higher cylinder leak down, poor subseal O-ring seal, raised sump hole & or sump plug (see M8 PRO TIP below) & looser lifter to lifter bore clearances.

    465 Camchest kits are available in FEULING HP+ and RACE SERIES combinations with chain drive REAPER camshafts.

    465 CAM - The 465 Reaper is an accelerator, producing solid bottom end performance with substantial gains above 2,800 RPM when compared to stock. This direct bolt in replacement for Milwaukee Eight engines can be used with stock valve springs, pushrods, lifters and exhaust. Will respond well with slip-on mufflers and or performance exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107. This cam will also respond well with increased bore and or compression.

    Cam Part # 1343

    Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
    Intake .445 4 BTDC 23 ABDC 207 .100 99.5
    Exhaust .465 50 BBDC 6 ATDC 236 .100 112
    RPM range: 1,850 - 5,950 Grind: 465 Overlap: 10

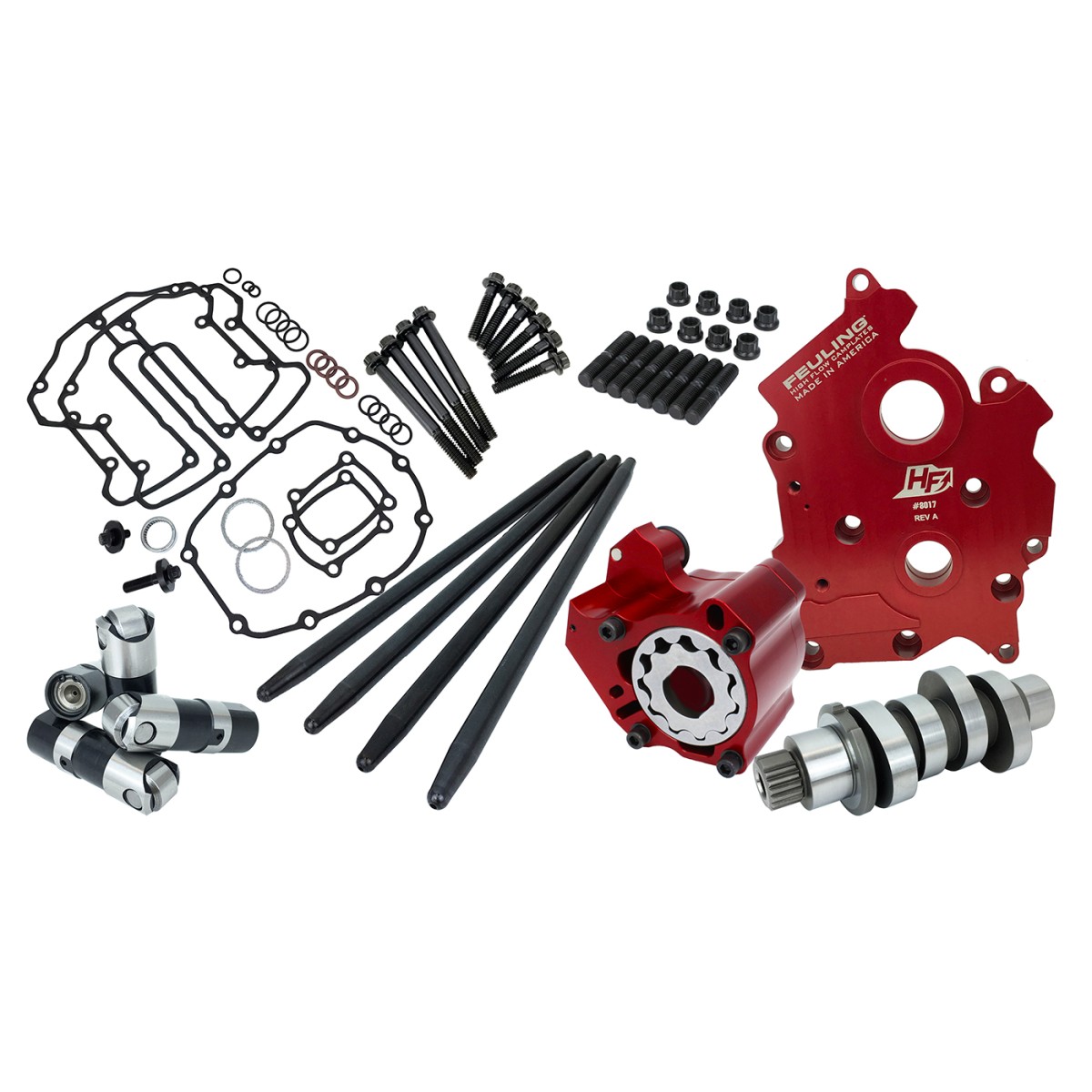

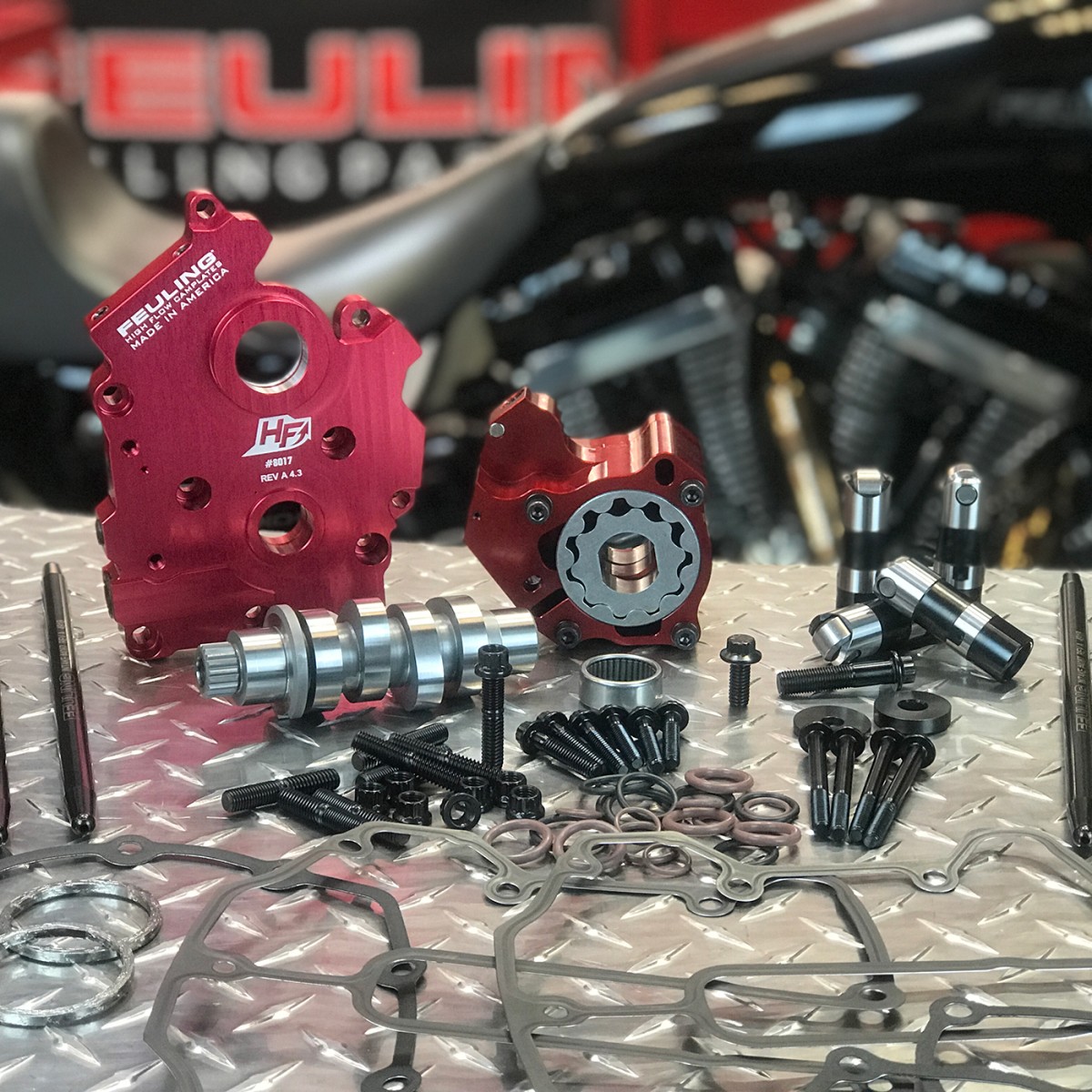

    Kits include: FEULING high volume Oil pump, HIGH FLOW billet Camplate, REAPER Series Camshaft, hydraulic roller lifters, fixed length pushrods, TIMKEN/KOYO cam bearing, rocker arm studs and nuts, gaskets, O-rings, ARP cam/crank fasteners, washers, moly lube and LOCTITE.

    -RACE SERIES Kits include a RACE SERIES oiling system: billet 7075 oil pump, RACE SERIES lifters, HIGH FLOW billet 7075 aluminum camplate.

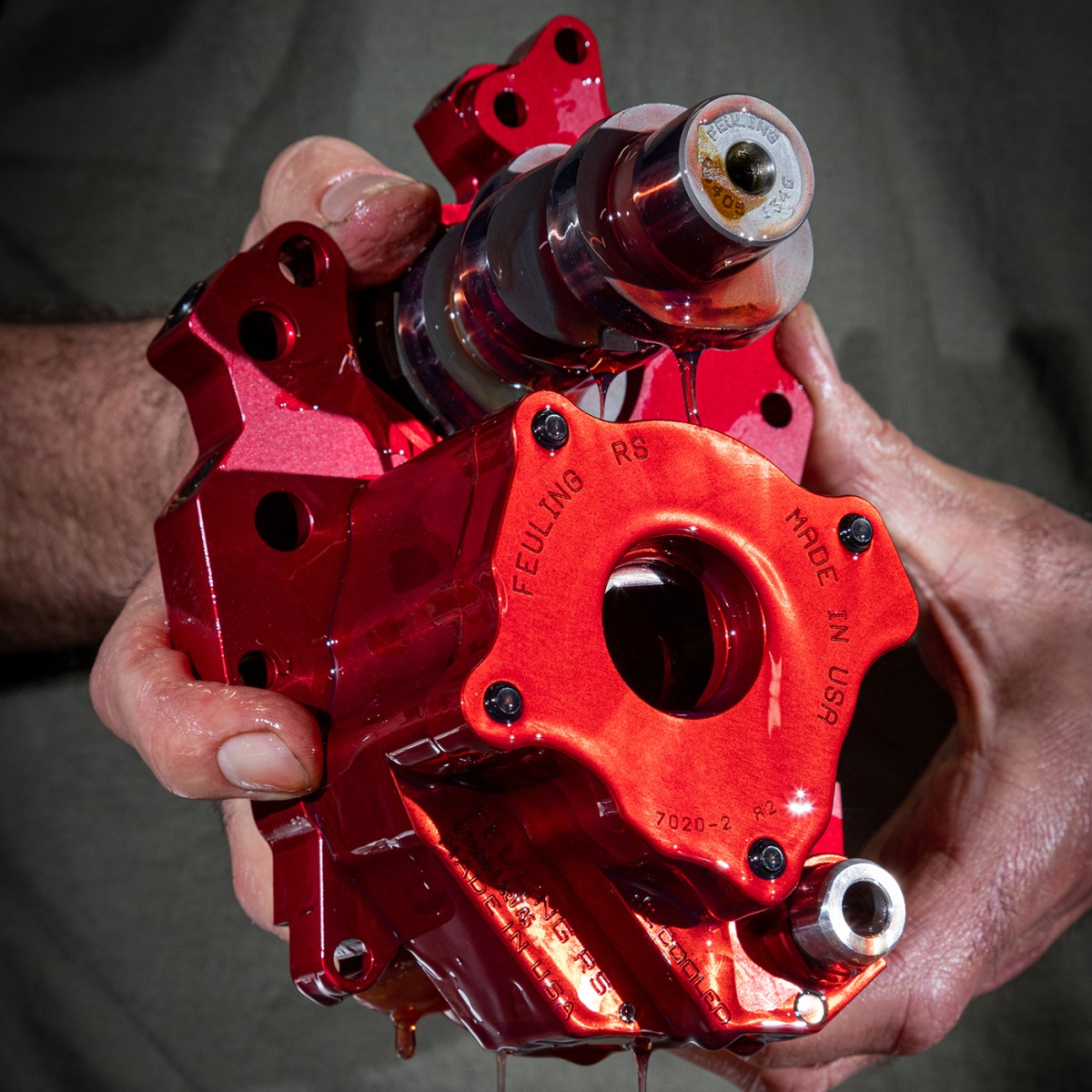

    Billet 7075 aluminum oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature, deeper scavenge kidneys over HP+ oil pump.
    Deeper scavenge kidney ports over the HP+ series for even more scavenge flow volume
    RACE SERIES hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange.


    OIL LEVEL NOTE - DO NOT OVERFILL OIL TANK
    It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot.

    Note: The M-Eight oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.

    We recommend the following steps to achieve proper oil level:
    1. Check cold oil level.
    2. Ride the bike until operating temperature is reached.
    3. Shut the bike off while still in the upright position. (This insures an accurate reading)
    4. Once the bike is on the kickstand check oil level.
    5. Add or remove oil as needed.

    RS camchest kit Fits: Milwaukee Eight Center/Water Cooled Engines


    DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES

    Feuling does not recommend tuning beyond stock emissions standards.


    FITS:

    Milwaukee Eight 17-24 (Except VVT) center/water cooled, Chain Drive, Includes 465 Reaper Camshafts #1343, Cam Install kit #2030, RACE SERIES Lifters #4017, one piece pushrods #4087, RACE SERIES oil pump #7021, HIGH FLOW camplate #8017, and ARP Rocker studs and nuts, Camplate/Oil Pump Fasteners.


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    1343, 2030, 3037, 4017, 4087, 7021, 8017, 8022

    Disclaimer: Qualified Manufacturer Declared 49-State Federal Emissions Compliant Part (Not legal for sale or use in California) means any aftermarket part intended to replace an original equipment emissions-related part and that meets all EPA emission regulations by installing the element of design in all emissions-related respects to the certified configuration of the vehicle, engine, or piece of equipment. This manufacturer has declared in writing that it has fully documented the emissions testing of an appropriate test vehicle, engine, or piece of equipment that had been identically altered and that the part meets all applicable emissions standards for that make/model/year fitment(s) advertised.
