FEULING M-Eight WATER COOLED camchest kits include all necessary components from top to bottom of the camchest conveniently packaged under 1 part #. These combination kits not only ensure each individual part is designed to work and function together but to do so in total harmony. These camchest kits take the guess work out of the ordering process and guarantees the engine builder maximum reliability, peak performance and the coolest engine and oil temperatures obtainable.
Available in HP+ or RACE SERIES kits
Quieter and smoother engine operation
Increase oil pressure, scavenge volume and engine oil flow
30% more pressure gear volume over stock
53% more scavenge gear volume over stock
42% more scavenge volume with port sizing, matched passages and holes to the engine case
46% more oil volume to the crankshaft and connecting rod bearing
15-25 degree cooler engine temperatures
15-30 degree cooler oil temperatures
10-30 more PSI of oil pressure
Reduces wet sumping, blow by and oily air cleaners
Magnets in oil pump to help protect gears and pressure relief valve

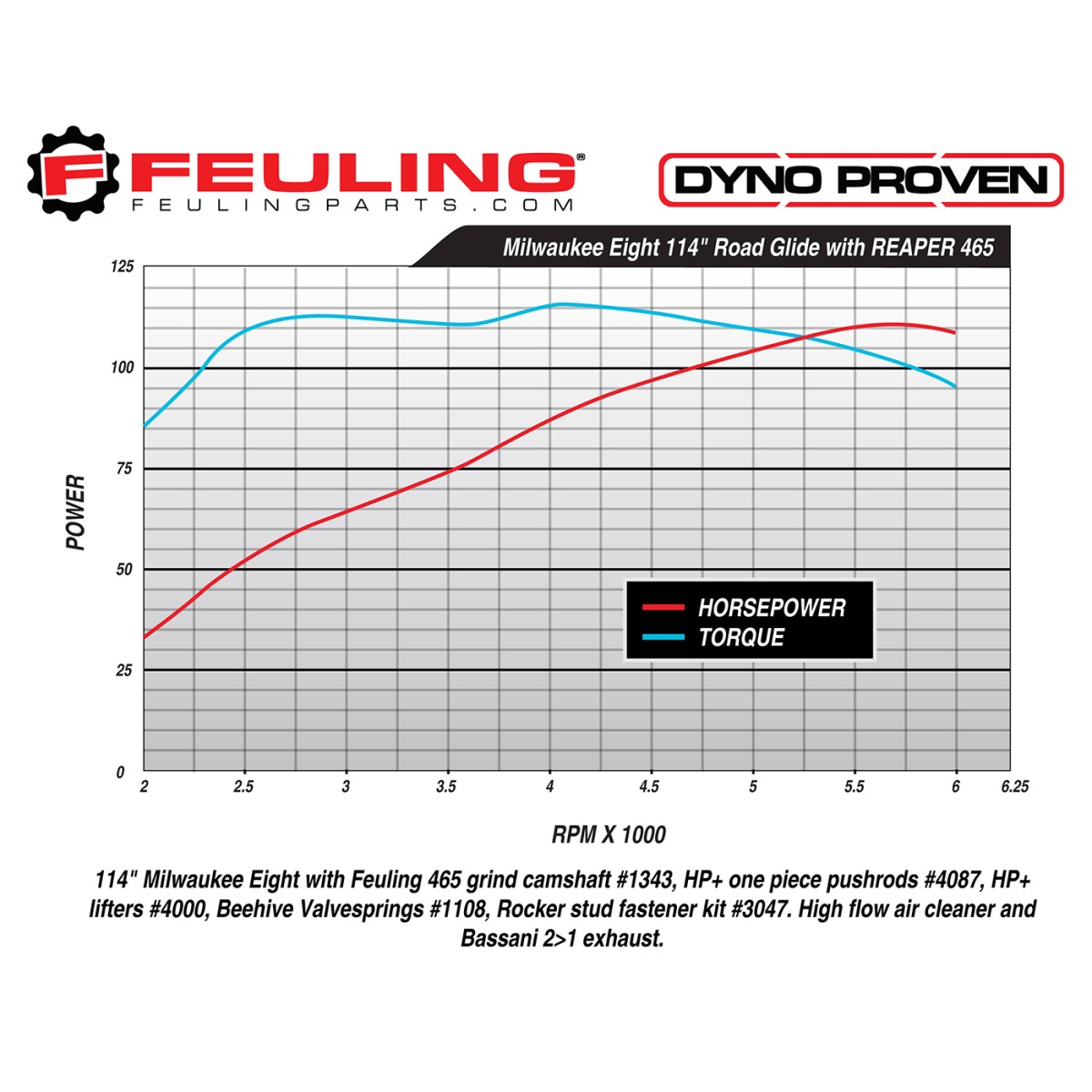

Test results show 2 HP gain and 2 ft/lbs of TQ gain to the rear wheel on Milwaukee Eight
NOTE: FEULING test results show a 50% reduction of engine sump oil level.

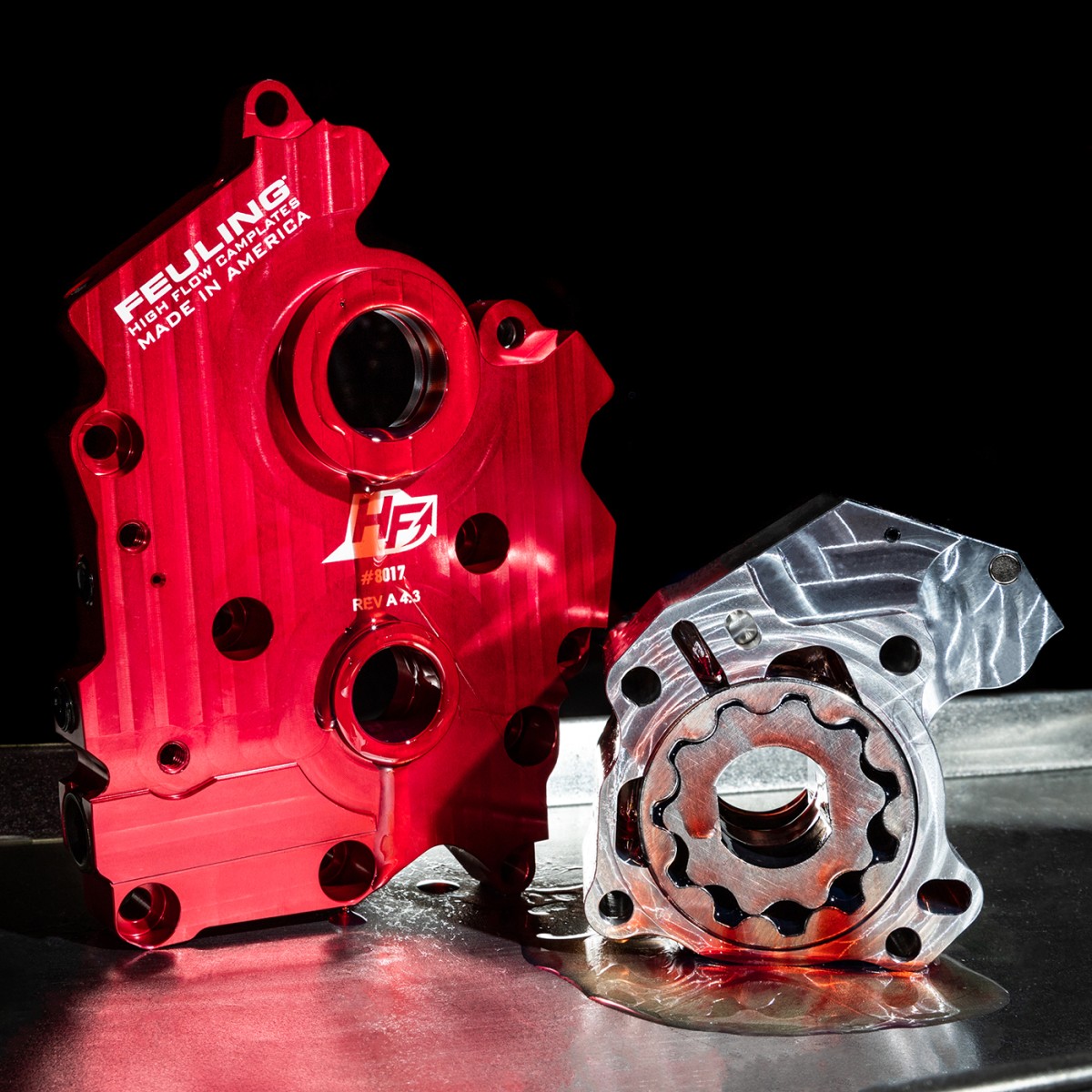

-HP+ SERIES Kits includes a billet 6061 aluminum high volume oil pump, FEULING HIGH FLOW camplate, HP+ Hydraulic roller lifters and cam installation kit.
465 Camchest kits are available in FEULING HP+ and RACE SERIES combinations with chain drive REAPER camshafts.
465 CAM - The 465 Reaper is an accelerator, producing solid bottom end performance with substantial gains above 2,800 RPM when compared to stock. This direct bolt in replacement for Milwaukee Eight engines can be used with stock valve springs, pushrods, lifters and exhaust. Will respond well with slip-on mufflers and or performance exhaust system and air cleaner. Use of performance valve-springs is not required but may result in a quieter, smoother running valve-train See Feuling #1107. This cam will also respond well with increased bore and or compression.
Cam Part # 1343
Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
Intake .445 4 BTDC 23 ABDC 207 .100 99.5
Exhaust .465 50 BBDC 6 ATDC 236 .100 112
RPM range: 1,850 - 5,950 Grind: 465 Overlap: 10

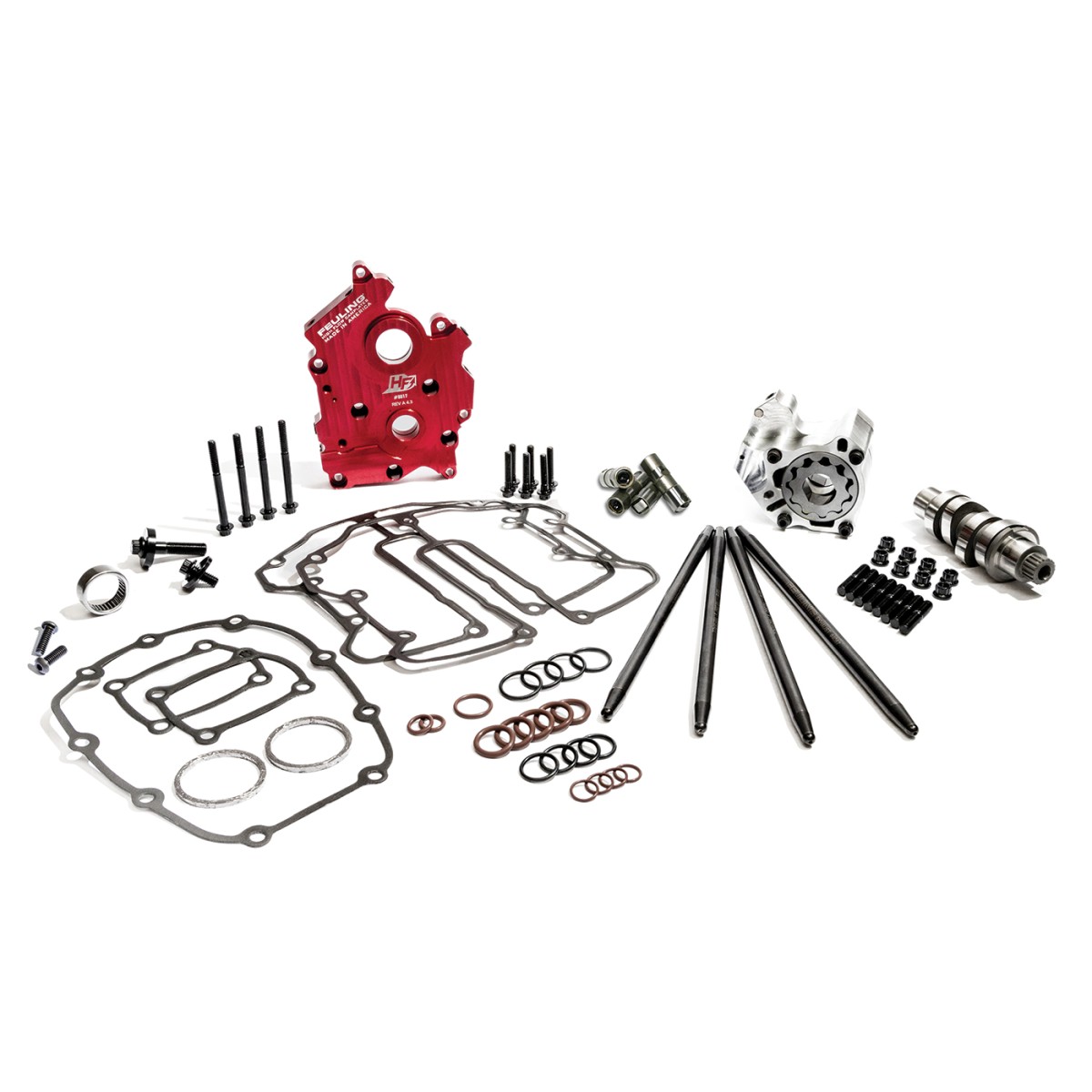

Kits include: FEULING high volume Oil pump, HIGH FLOW billet Camplate, REAPER Series Camshaft, hydraulic roller lifters, fixed length pushrods, TIMKEN/KOYO cam bearing, rocker arm studs and nuts, gaskets, O-rings, ARP cam/crank fasteners, washers, moly lube and LOCTITE.
Due to the mass call volume & inquires with requests for the M-Eight oil pump back cover O-ring/seal groove, weve added the groove! (5/11/21). Although Feulings in house testing on healthy engines did not show a benefit. The O-ring may have potential benefits in certain circumstances such as engines with higher cylinder leak down, poor subseal O-ring seal, raised sump hole & or sump plug (see M8 PRO TIP below) & looser lifter to lifter bore clearances.
OIL LEVEL NOTE - DO NOT OVERFILL OIL TANK
It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot.
Note: The M-Eight oil pick up port is on the right side of the engine. Letting the bike idle or warm up on the kickstand will naturally fill the engine case and skew the oil level in the tank.
We recommend the following steps to achieve proper oil level:
1. Check cold oil level.
2. Ride the bike until operating temperature is reached.
3. Shut the bike off while still in the upright position. (This insures an accurate reading)
4. Once the bike is on the kickstand check oil level.
5. Add or remove oil as needed.
HP+ camchest kit Fits: Milwaukee Eight water Cooled Engines
DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES
Feuling does not recommend tuning beyond stock emissions standards.
FITS:
Milwaukee Eight 17-24 Except VVT water cooled, Chain Drive, Includes 465 Reaper Camshafts #1343, Cam Install kit #2030, HP+ Lifters #4000, one piece pushrods #4087, HP+ oil pump #7019, HIGH FLOW camplate #8017, and ARP Rocker studs and nuts, Camplate/Oil Pump Fasteners.
COUNTRY OF ORIGIN:
USA
KIT SKU'S:
1343, 2030, 3037, 4000, 4087, 7019, 8017, 8022
Disclaimer: Qualified Manufacturer Declared 49-State Federal Emissions Compliant Part (Not legal for sale or use in California) means any aftermarket part intended to replace an original equipment emissions-related part and that meets all EPA emission regulations by installing the element of design in all emissions-related respects to the certified configuration of the vehicle, engine, or piece of equipment. This manufacturer has declared in writing that it has fully documented the emissions testing of an appropriate test vehicle, engine, or piece of equipment that had been identically altered and that the part meets all applicable emissions standards for that make/model/year fitment(s) advertised.
