NOTE : This oiling system is designed for the original fitment mechanical spring tensioners. For hydraulic conversion see part #s 7076, 7077, 7077ST, 7086
Oil is the Life Blood of your Engine!
FEULING oiling system kits combine all the needed components to finish your TC engines oiling system under 1 Part #, available in HP+ or RACE SERIES kits. FEULING oiling system kits increase oil pressure, oil volume, engine oil flow and return oil scavenging, eliminating wet sumping and oily air cleaners. Test results show 25-35 degree cooler engine temperatures, 15-30 degree cooler oil temperatures, 15-30 more pounds of oil pressure and quieter smoother engine operation. Results also show a substantial increase of oil pressure and 3 H.P. and 4 Ft. Lbs of T.Q to the rear wheel.
-Both HP+ and RACE SERIES kits include FEULINGS HIGH FLOW billet camplate made from 7075 aluminum which is 50% harder and stronger than the factory, SE and other aftermarket camplates. FEULING increases oil flow and volume by enlarging the oil pump reservoirs and critical oil passages including matching the oil port holes throughout the camplate to the port holes in the engine case which increases engine oil flow to the lifters, piston cooling jets, crankshaft and rod bearings.
-HP+ SERIES Kits include a billet 6061 aluminum high volume oil pump, FEULING HIGH FLOW camplate, HP+ Hydraulic roller lifters, gaskets and O-ring kit.
-RACE SERIES Kits include a billet 7075 hard anodized oil pump which is 50% harder and stronger than the factory pump holding tighter tolerances under temperature. RACE SERIES hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts. Kits include a RACE SERIES oil pump, RACE SERIES lifters, HIGH FLOW camplate, gaskets and O-rings.
CONVERSION CAMPLATE Kits #7076 & #7077 utilize the early style 99-06 camshafts and upgrade the cam chain system to use the late style 07-17 hydraulic tensioner system. Factory sprockets, tensioners, chain and hardware purchased separately.
#7071Â³ 99-06 Except 06 Dyna, HP + Series - Chain Drive (Part #s: 2050, 4000, 7000, 8010)
Â³ Includes bearing retainer plate & hardware

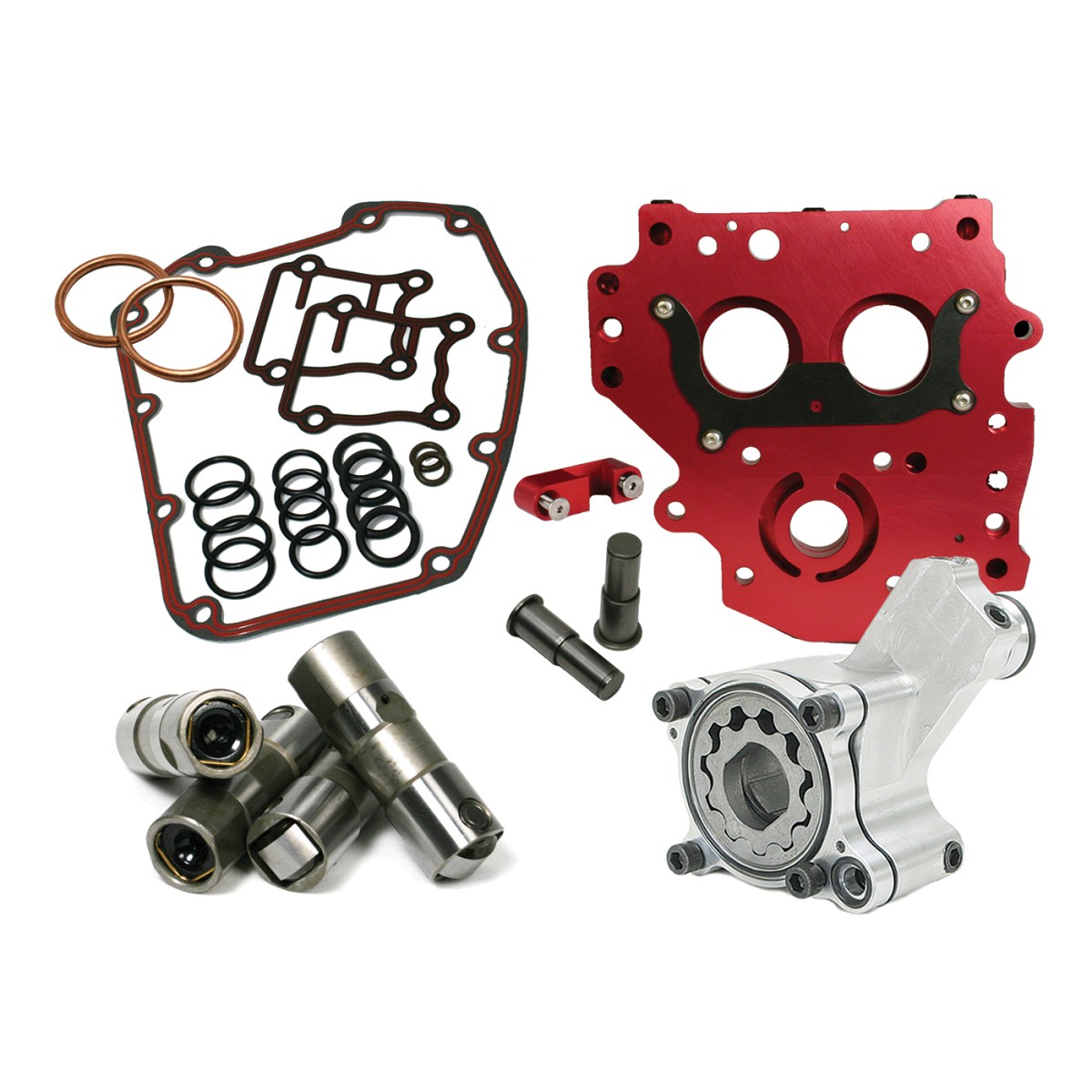

TC 99-06 Except 06 Dyna, Chain Drive, Includes Gasket kit #2050, HP+ Lifters #4000, HP+ Oil Pump #7000 & Anodized Camplate #8010
COUNTRY OF ORIGIN:
2050, 4000, 7000, 7078, 8000, 8001
