VENTED DIPSTICK

TC Bagger, EVO FL, polished

$299.95
In stock
3095

Vented dipstick TC Bagger 99-06, EVO FL 93-98, polished cap

  • Polished finish

    GET THE MOST OUT OF YOUR TWIN CAM!

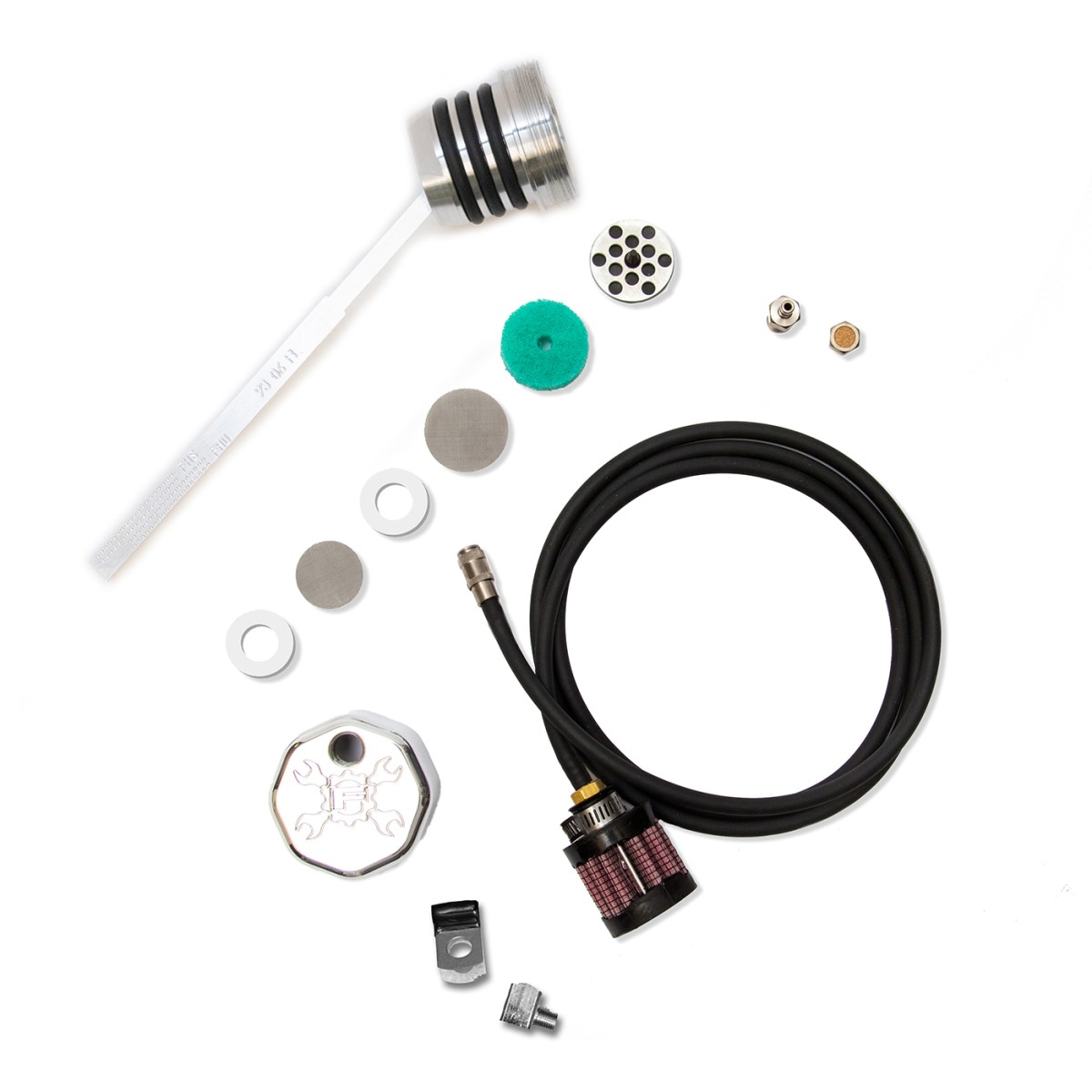

    The FEULING billet dipsticks vent/breathe excessive crank case pressure from the oil tank through a PCV style breather, consisting of an oil separator system, perforated disc, replaceable filter element and umbrella flapper valve. Feuling vented dipsticks screw into the factory oil fill spout as a stock replacement part. These breathing dipsticks remove unwanted build-up of blow by pressure in the oil tank.

    Blow by is pressure that is forced past the rings and cylinders, pushed into the crankcase and then forced into the oil tank. FEULING dipsticks help remove this unwanted pressure through a (CVS) Crankcase Ventilation System. Test results show a decrease in engine oil sump levels, more freely/smoother revving engine, increased MPG and decreased blow-by.

    NOTE: All internal combustion engines have a certain amount of blow by. Larger cubic inch engines as well as engines with worn and or loose ring clearances will have increased blow by. Engines pushed to their limits will also produce excessive build up of power robbing blow by.

    We include 2 venting styles (Options) to choose from when installing the dipstick:

    OPTION 1.) 1/8 NPT breather vent fitting with internal porous filter element. This option gives a clean look however it can produce an oil misting/residue out of the element on engines with excessive leakdown/blow by.

    OPTION 2.) Quick disconnect coupler fitting with rubber hose and filter element. This option will run any excessive oil misting/residue through the line and into the filter element. However this option does requires disconnecting the fitting in order to check the oil. This is Feulings preferred option as it breaths more than option 1.

    For option 2, we recommend routing the line up the frame rail, up under the seat/abs area then back down along the right side frame rail and the filter element can fit cleanly between the engine/trans matting area on the inside of the lower right frame rail.

    Available in polished or fade resistant black finish

    *This dipstick does get hot, use a glove when checking oil level

    TECH TIP: Feuling highly recommends staying off the rev limiter and running conventional oil in the M8 engines to help maintain ring seal and minimize blow by.

    Checking oil level
    There are two ways to read the oil level with this dipstick, with the bike on the jiffy stand (FHS) or the bike upright and level (FHU).

    FHS = FULL HOT STAND If reading the dipstick with the bike on the jiffy stand you will take your reading from the dimples labeled FHS (Full Hot Stand).

    FHU = FULL HOT UPRIGHT When reading the dipstick with the bike upright and level you will take the reading from the dimples labeled FHU (Full Hot Upright).

    OIL LEVEL - DO NOT OVERFILL OIL TANK
    It is important to get the correct hot oil level in your bike. Feuling recommends running the oil level 90%-99% full when hot.

    Note: Letting the bike idle or warm up on the kickstand can naturally fill the engine case and skew the oil level in the tank.
    We recommend the following steps to achieve proper oil level:
    1. Check cold oil level.
    2. Ride the bike until operating temperature is reached.
    3. Shut the bike off while still in the upright position. (This insures an accurate reading)
    4. Once the bike is on the kickstand check oil level.
    5. Add or remove oil as needed

    NOTE: Our in house testing shows venting the air cleaner to atmosphere may be problematic resulting in oil carry over/misting out of the breathers. When air filter venting is accompanied with the use of oil tank venting such as the Feuling vented dipstick and or a vented transmission top cover the oil carry over/misting can be increased.


    FITS:

    TC Bagger 99-06, EVO FL 93-98, polished cap


    COUNTRY OF ORIGIN:

    USA

    Disclaimer: This is a RACE ONLY part Parts designated as Race Only are for use only on vehicles used for competition racing and are not for use on vehicles registered for use on public roads. Sale and/or installation of Race Only parts in any way inconsistent with this warning is prohibited and may result in enforcement by the U.S EPA under the federal Clean Air Act. RACE ONLY PARTS ARE NOT LEGAL FOR SALE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES. NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EPA POLLUTION CONTROLLED MOTOR VEHICLE.

  • Our Dealers / Distributors Part #
    Drag Specialties 1012-0258
    Neo Factory 029211
    Parts Canada Development Co 1012-0258
    Parts Europe 1012-0258
