MILWAUKEE EIGHT RACE SERIES CAM KIT

521 Chain Drive Cam, RACE SERIES Lifters, Install kit

$639.95
In stock
1456

521 REAPER M8 RACE SERIES Camshaft kit

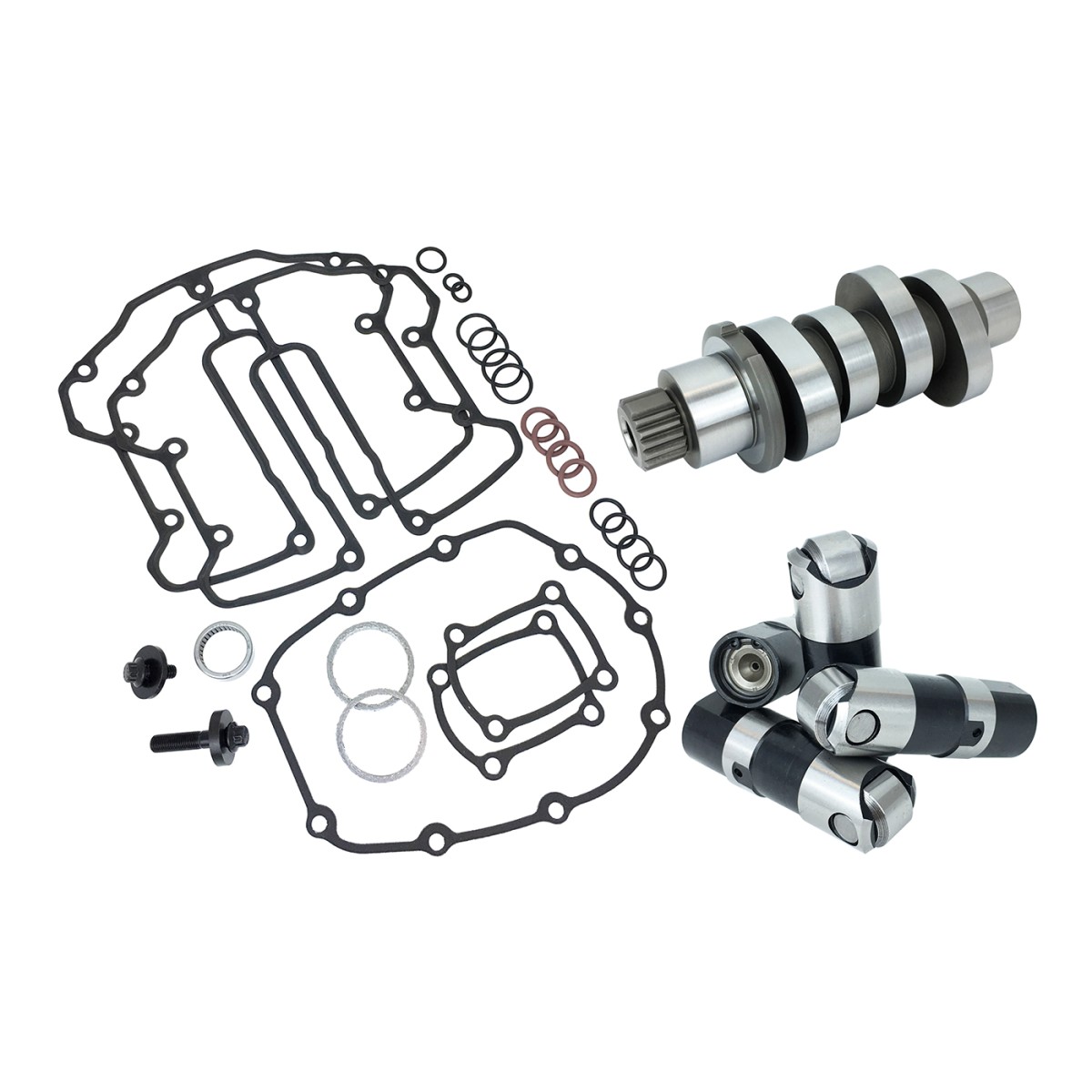

  • FEULING camshaft kits for Milwaukee Eight engines include chain drive camshaft, lifters and a cam installation kit that includes cam bearing, cam/crank hardware and a gasket/O-ring kit that allows for install of the factory one piece pushrods and or our optional and recommended heavy duty HP+ 0.165 wall one piece pushrods - see # 4087

    Feuling fastener kit #3047 is also highly recommend to help prevent cylinder head cracking, this kit replaces the rocker shaft bolts with studs and nuts to help reduce the stress on the rocker shaft standoffs.

    HP+ kits come with HP+ lifters and RACE SERIES kits come with RACE SERIES lifters

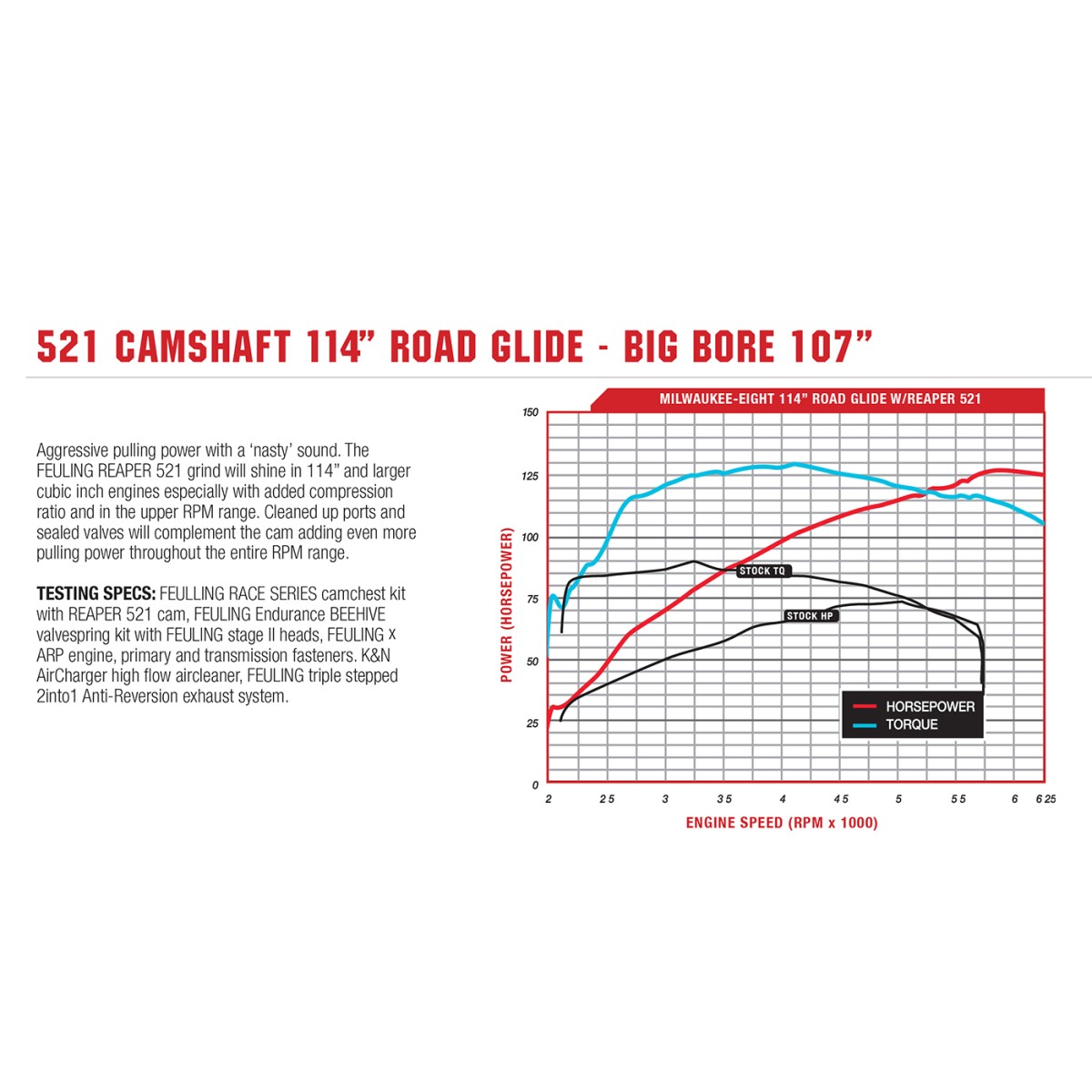

    521 CAM - Aggressive pulling power with a nasty sound, the REAPER 521 grind will shine in 114 and larger cubic inch engines with added compression ratio. Ported cylinder heads are not required but will complement the cam and add even more pulling power throughout the range. The stock throttle body produces an excellent powerband and use of a high flow throttle body will increase peak power numbers. A high flow exhaust system and air cleaner is highly recommended for optimal performance. FEULING recommends matching this cam with our RACE SERIES oiling system.

    NOTE: High Lift valve springs are required on stock cylinder heads, see FEULING BEEHIVE valve spring kit #1107 (DRAG# 0926-2973) or #1108 (DRAG# 0926-2974). SE cylinder heads have high lift valvesprings and will accept the 521 grind cam. Heavy Duty one piece pushrods are also highly recommended see #4087.


    Part # 1346 Grind 521 RPM range 2,250 - 6,250.

    Valve Lift Open Close Duration @ 50 lift @ TDC Lobe Centerline
    Intake .518 17 BTDC 34 ABDC 231 .162 98.5
    Exhaust .521 51.5 BBDC 11.5 ATDC 243 .125 110
    Overlap: 28.5

    RACE SERIES hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures, increase engine RPM before valve float and feature increased roller clearance for steep ramped camshafts and clearance for the Milwaukee Eight front exhaust camshaft lobe flange.

    *Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio

    DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE

    Feuling does not recommend tuning beyond stock emissions standards.


    FITS:

    Milwaukee Eight 17-24 Except VVT, RACE SERIES 521 CAM KIT - chain drive


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    1346, 2030, 4017

    Disclaimer: This is a RACE ONLY part Parts designated as Race Only are for use only on vehicles used for competition racing and are not for use on vehicles registered for use on public roads. Sale and/or installation of Race Only parts in any way inconsistent with this warning is prohibited and may result in enforcement by the U.S EPA under the federal Clean Air Act. RACE ONLY PARTS ARE NOT LEGAL FOR SALE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES. NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EPA POLLUTION CONTROLLED MOTOR VEHICLE.

  • Our Dealers / Distributors Part #
    Drag Specialties 0925-1211
    Neo Factory 033621
    Parts Canada Development Co 0925-1211
    Parts Europe 0925-1211
