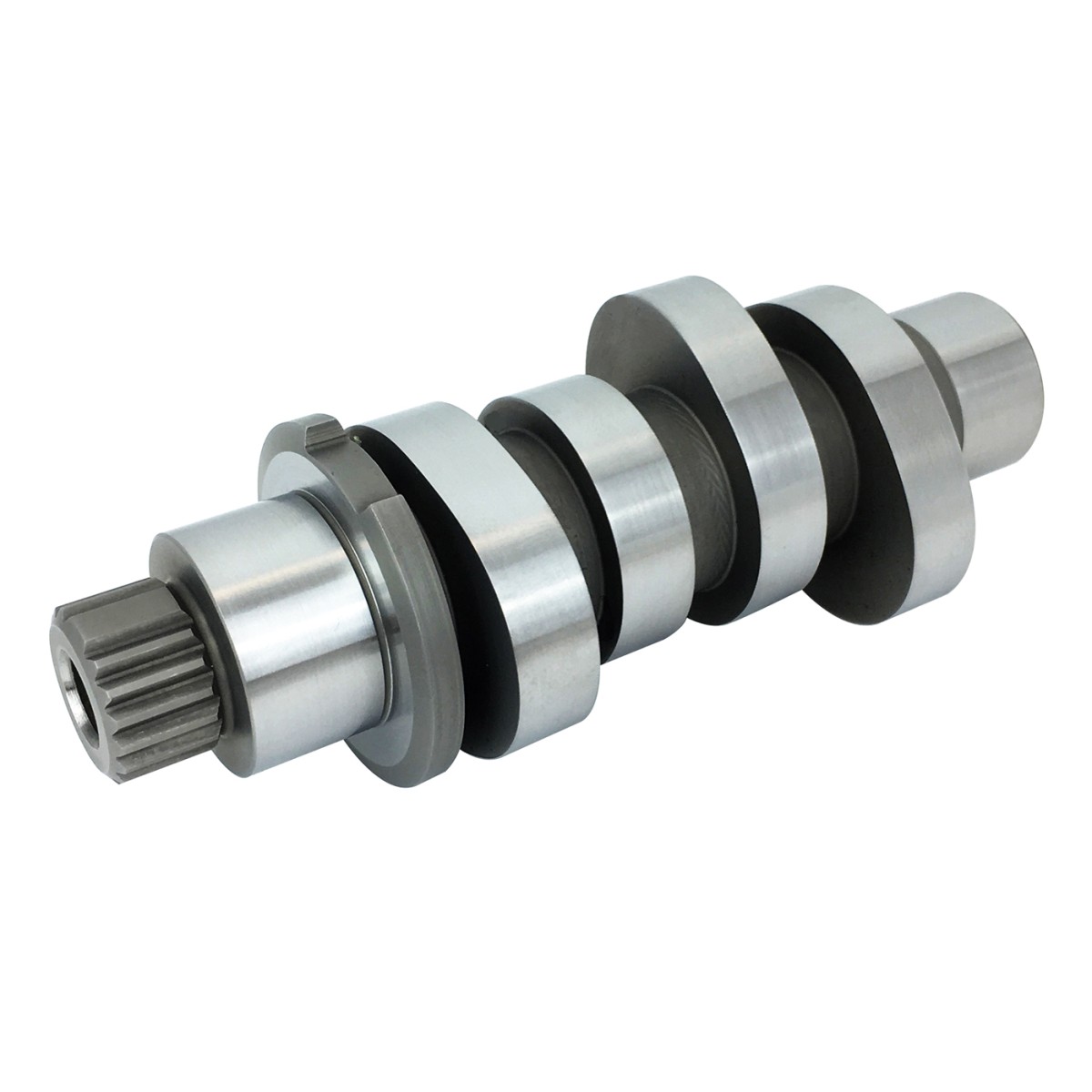

MILWAUKEE EIGHT CAM - 592

592 CAM - The big nasty Put your big boy pants on get serious with bore size, ported cylinder heads/intake, high flow valves and throttle body. Aggressive camshaft requiring high lift and higher load valvesprings, performance pushrods and lifters. High flow air cleaner and triple stepped exhaust pipe highly recommended. FEULING also recommends matching this cam with our RACE SERIES oiling system #7097 or #7099.

NOTE: High lift/High Load valvesprings required see recommended Feuling HIGH LOAD BEEHIVE valvespring kit #1207 (DRAG# 0926-3138). Heavy duty pushrods #4087 (Drag# 0928-0091). Clearances MUST be checked when installing this cam. SE camplates #25400419 have been found to have clearance issues on high lift camshafts.

Part # 1348 RPM range 2,750 - 6,350. Grind: 592

...............Valve Lift Open Close Duration @ 50 TDC Lift Lobe Centerline
Intake .578 20 34 234 182 97
Exhaust .592 68 16 264 146 116
Overlap: 36


DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VECHICLE

Feuling does not recommend tuning beyond stock emissions standards.

FITS:

Milwaukee Eight 17 - 22, 592 grind chain drive cam, 578 Intake lift, 592 Exhaust lift. High lift valve springs, performance pushrods and lifters required. RPM 2,850-6,250

COUNTRY OF ORIGIN:

USA

Disclaimer: This is a RACE ONLY part Parts designated as Race Only are for use only on vehicles used for competition racing and are not for use on vehicles registered for use on public roads. Sale and/or installation of Race Only parts in any way inconsistent with this warning is prohibited and may result in enforcement by the U.S EPA under the federal Clean Air Act. RACE ONLY PARTS ARE NOT LEGAL FOR SALE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES. NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EPA POLLUTION CONTROLLED MOTOR VEHICLE.
