ENDURANCE BEEHIVE SPRING KIT

ENDURANCE BEEHIVE SPRING KIT, Milwaukee Eight With Ti retainers

$599.95
In stock
1108

ENDURANCE BEEHIVE VALVE SPRINGS with Ti retainers Milwaukee Eight 17 - 24

  • W/Ti Retainers
    FEULING ENDURANCE BEEHIVE valve springs are a direct bolt in replacement, no spring seat or rocker cover machining required. Endurance springs are machined from a premium grade
    Hi-tensile chrome silicon single conical ovate wire, shot-peened with a specially processed
    thermal heat treat and super NexTex finish to give these valve springs the needed fatigue life
    to exceed the high demands of engines from stock to performance.

    FEULING BEEHIVE valve springs use a smaller lighter weight retainer which drastically reduces the valve weight creating a quicker revving and smoother motion than comparable steel retainers.

    FEULING BEEHIVE valve springs are packaged as a matched set and must be installed at the correct OPEN HEIGHT. Matching max cam lift to the open height spec of the valve springs is essential for optimal valvetrain operation and spring life. See included spring spec chart.

    FEULING ENDURANCE SPRINGS are a direct bolt-in replacement up to 565 cam lift with no machining or rocker box clearancing required.
    FEULING HIGH LOAD SPRINGS are good up to .650 lift machining may be REQUIRED depending on cam lift.

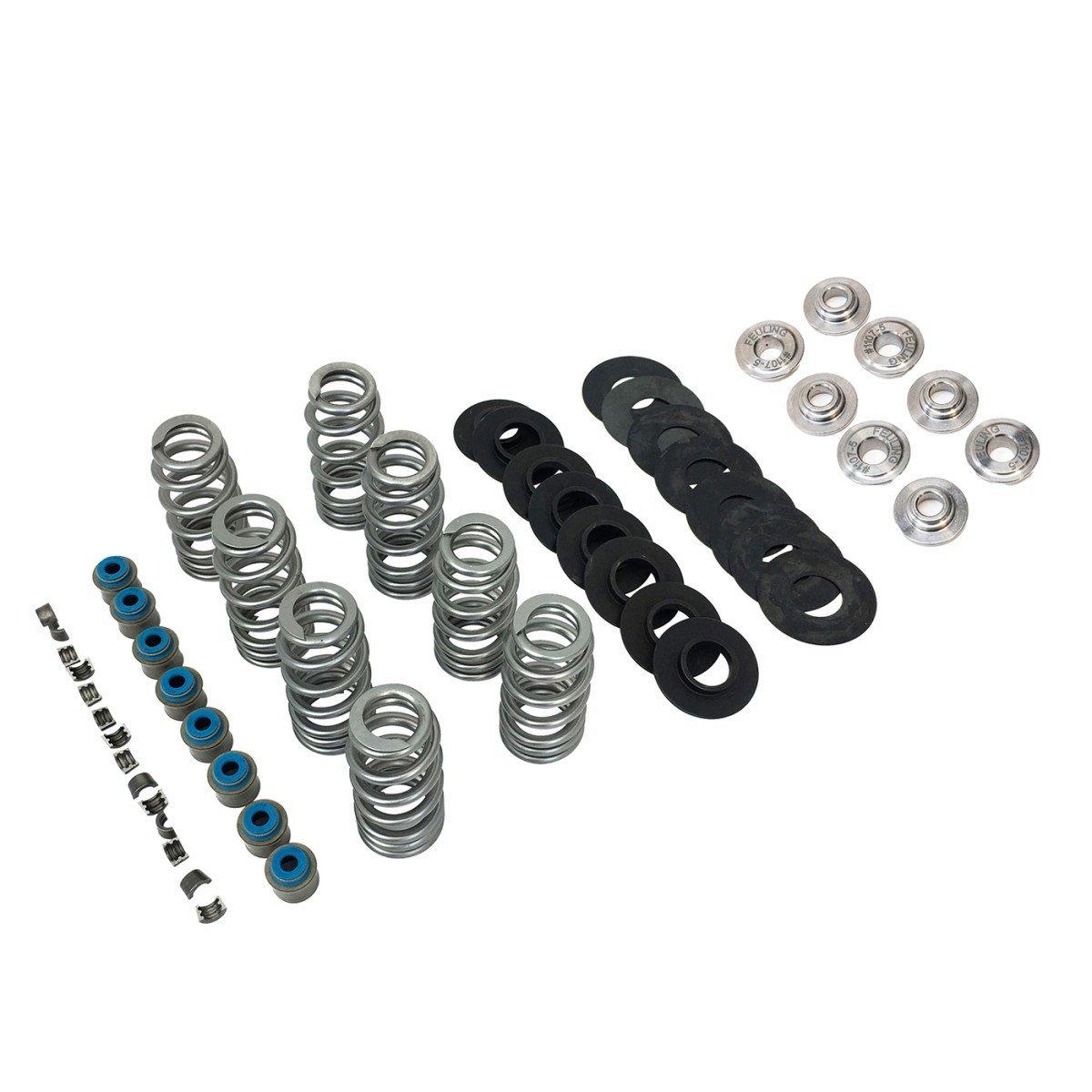

    Kits include: matched set of FEULING ENDURACE BEEHIVE valve springs, Ti retainers, machined spring seats, seat shims, valve locks and a set of premium Viton valve seals equipped with a spring loaded valve stem wiper system.

    Dont get stung by inferior valve springs!
    Quicker Revving - Smoother Motion - Light Weight Ti Retainers - Bolt in up to 565 lift for M8

    MILWAUKEE EIGHT

    SEAT Lbs. / INSTALLED HEIGHT
    134 Lbs. @ 1.375 (0.405 Lift)
    127 Lbs. @ 1.405 (0.435 Lift)
    125 Lbs. @ 1.415 (0.445 Lift)
    121 Lbs. @ 1.435 (0.465 Lift)
    116 Lbs. @ 1.455 (0.485 Lift)
    113 Lbs. @ 1.470 (0.500 Lift)
    109 Lbs. @ 1.490 (0.520 Lift)
    103 Lbs. @ 1.520 (0.550 Lift)
    226 Lbs @ 0.970 OPEN HEIGHT
    Coil Bind @ .920
    *Cam specs measured on the lifter @ 0.050 lift with 1.61 rocker arm ratio


    FITS:

    M-Eight 17-24, stock 6mm valve stems with triple groove, this kit includes Ti Retainers, Stock & SE heads


    COUNTRY OF ORIGIN:

    USA

    Disclaimer: This is a RACE ONLY part Parts designated as Race Only are for use only on vehicles used for competition racing and are not for use on vehicles registered for use on public roads. Sale and/or installation of Race Only parts in any way inconsistent with this warning is prohibited and may result in enforcement by the U.S EPA under the federal Clean Air Act. RACE ONLY PARTS ARE NOT LEGAL FOR SALE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES. NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EPA POLLUTION CONTROLLED MOTOR VEHICLE.

  • Our Dealers / Distributors Part #
    Drag Specialties 0926-2974
    Neo Factory 033597
    Parts Canada Development Co 0926-2974
    Parts Europe 0926-2974
