TWIN CAM CAMSHAFTS - 574

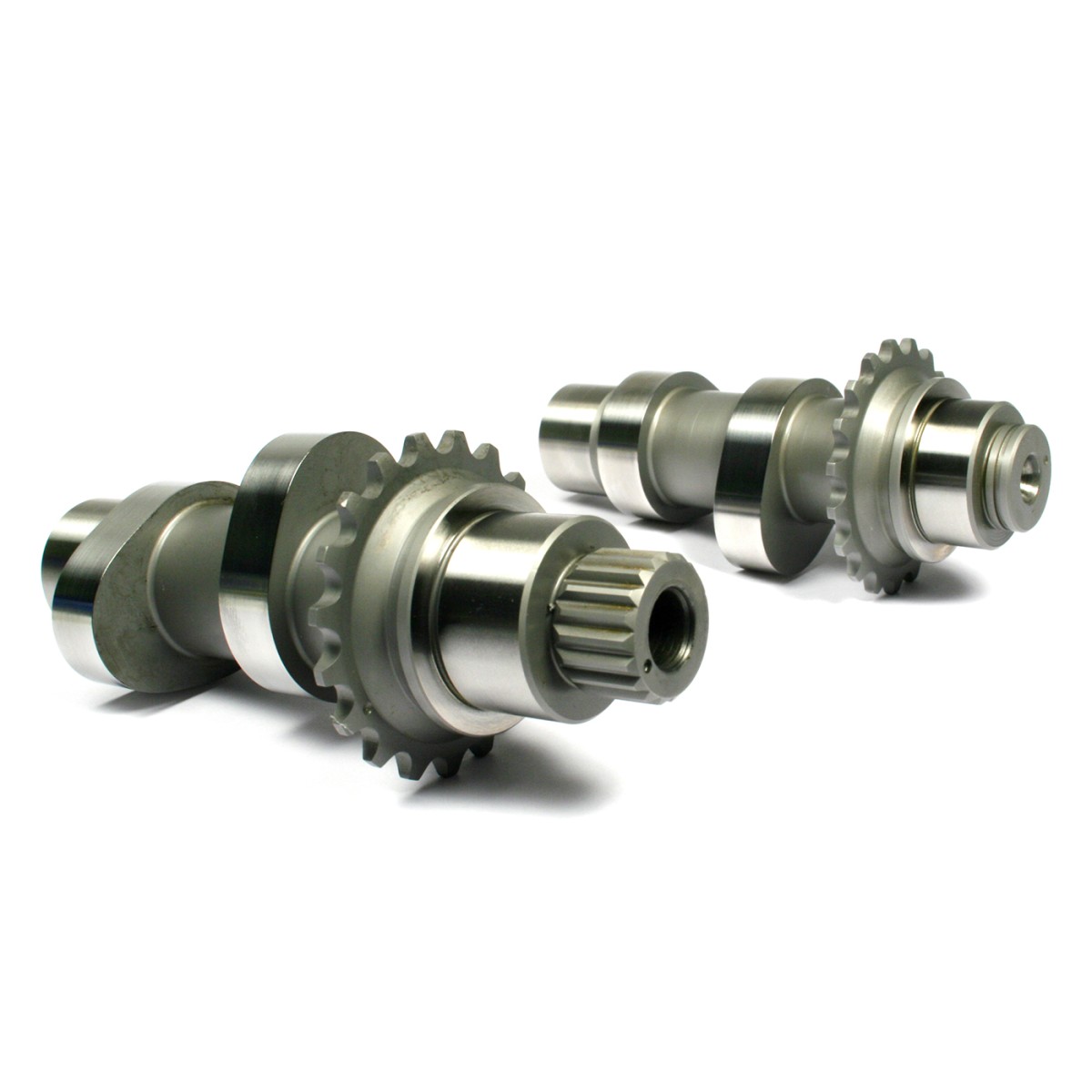

574 Conversion Chain Drive camshafts

$359.95
In stock
1017

574 REAPER Conversion Chain Drive camshafts, TC 99 - 06, Except 06

  • 574 CAMS - Wicked power band for modified engines and an excellent bolt in for stock 103 & 110 engines. Works very well with 95, 106, 107, 114 big bore engines. This is a great all around camshaft with solid low end performance and mind blowing mid and top end power. Extremely smooth cam lobe design creates a very smooth valve-train motion. Responds very well to modified cylinder heads, increased compression ratio, performance exhaust and intake systems. Performance valve springs are required on 99-04 engines and performance pushrods, lifters and clutch modifications are recommended. RPM 2,400 - 6,500

    UPDATE YOUR OLD MECHANICAL STYLE CAMS AND TENSIONERS TO THE NEW HYDRAULIC STYLE TENSIONER SYSTEM

    Conversion camshafts for 99-06 Twin Cam engines utilize the 99-06 inner cam journals with the 07-16 outer cam journals allowing the use of the 07-16 camplates, oil pump, hydraulic chain tensioners and chain drive system.

    *Conversion camshafts do not fit in a conversion camplate, conversion camshafts use the 07-17 camplate/oil pump

    Twin Cam Conversion Chain Drive 99 - 06 (Except 06 Dyna)
    Part # 1016¹ - (525CC Conversion Cam) - 525 Intake, 535 Exhaust
    Part # 1015¹ - (543CC Conversion Cam) - 543 Intake, 553 Exhaust
    Part # 1017¹ - (574CC Conversion Cam) - 574 Intake, 574 Exhaust
    Part # 1019¹ - (594CC Conversion Cam) - 594 Intake, 604 Exhaust
    Part # 1018¹ - (630CC Conversion Cam) - 630 Intake, 630 Exhaust
    ¹Factory hydraulic tensioners, outer cam & crank sprockets and thrust washers required, purchased separately - See #8080 & #8083


    DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES


    REQUIRED COMPONENTS FOR CONVERSION CAMSHAFTS - SEE KIT #8080 & 8083 / #7087 & 7088
    Installing conversion camshafts in 99-06 style T/C engines, require use the 07-17 style camplate and oil pump along with the following:
    Qty. 1 FEULING #8061 HD # 25675-06 Outer chain
    Qty. 1 FEULING #8060 HD # 25683-06 Inner chain
    Qty. 1 FEULING #1091 HD # 25673-06 Outer crank sprocket 17 tooth
    Qty. 1 FEULING #1092 HD # 25728-06 Outer cam sprocket 34 tooth
    Qty. 1 FEULING #8075 HD # 39968-06 Outer hydraulic tensioner unit
    Qty. 1 FEULING #8076 HD # 39969-06 Inner hydraulic tensioner unit
    1 - Bolt kit (2 - 1/4-20 x 3/4) (2 - 1/4-20 x 1-1/4)
    Qty. 1 FEULING #8041 Spacer kit Includes the following note installation requires qty. 2 of the following spacers, NOTE: correct spacer thickness is a must for proper sprocket alignment
    1-# 25729-06 Thrust washer - front cam .100
    1- # 25731-06 Spacer (.110 for cam alignment; use as required)
    1 - #25734-06 Spacer (.120 for cam alignment; use as required)
    1 - #25736-06 Spacer (.130 for cam alignment; use as required)
    1 - #25737-06 Spacer (.140 for cam alignment; use as required)
    1 - #25738-06 Spacer (.150 for cam alignment; use as required)

    NOTE: 99-01 engines with Magneti Marelli ignition requires use of Andrews sprocket #216015 in replacement of HD 34 tooth sprocket #25728-06 in order to install the new style outer cam chain


    FITS:

    TC 99 - 06, Except 06 Dyna models, 574 Intake, 574 Exhaust, requires 07-17 factory tensioners, outer sprockets, chains and hardware, Performance valve springs are required on 99-04 engines and performance pushrods and lifters are recommended. RPM 2,000 - 6,800

    Disclaimer: This is a RACE ONLY part Parts designated as Race Only are for use only on vehicles used for competition racing and are not for use on vehicles registered for use on public roads. Sale and/or installation of Race Only parts in any way inconsistent with this warning is prohibited and may result in enforcement by the U.S EPA under the federal Clean Air Act. RACE ONLY PARTS ARE NOT LEGAL FOR SALE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLES. NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY EPA POLLUTION CONTROLLED MOTOR VEHICLE.

  • Our Dealers / Distributors Part #
    Drag Specialties 0925-0607
    Neo Factory 1017
    Parts Canada Development Co 0925-0607
    Parts Europe 0925-0607
    Rollies Speed Shop FE-1017
    Sundance Enterprises 1017
