LIFTER BORE MEASURING KIT

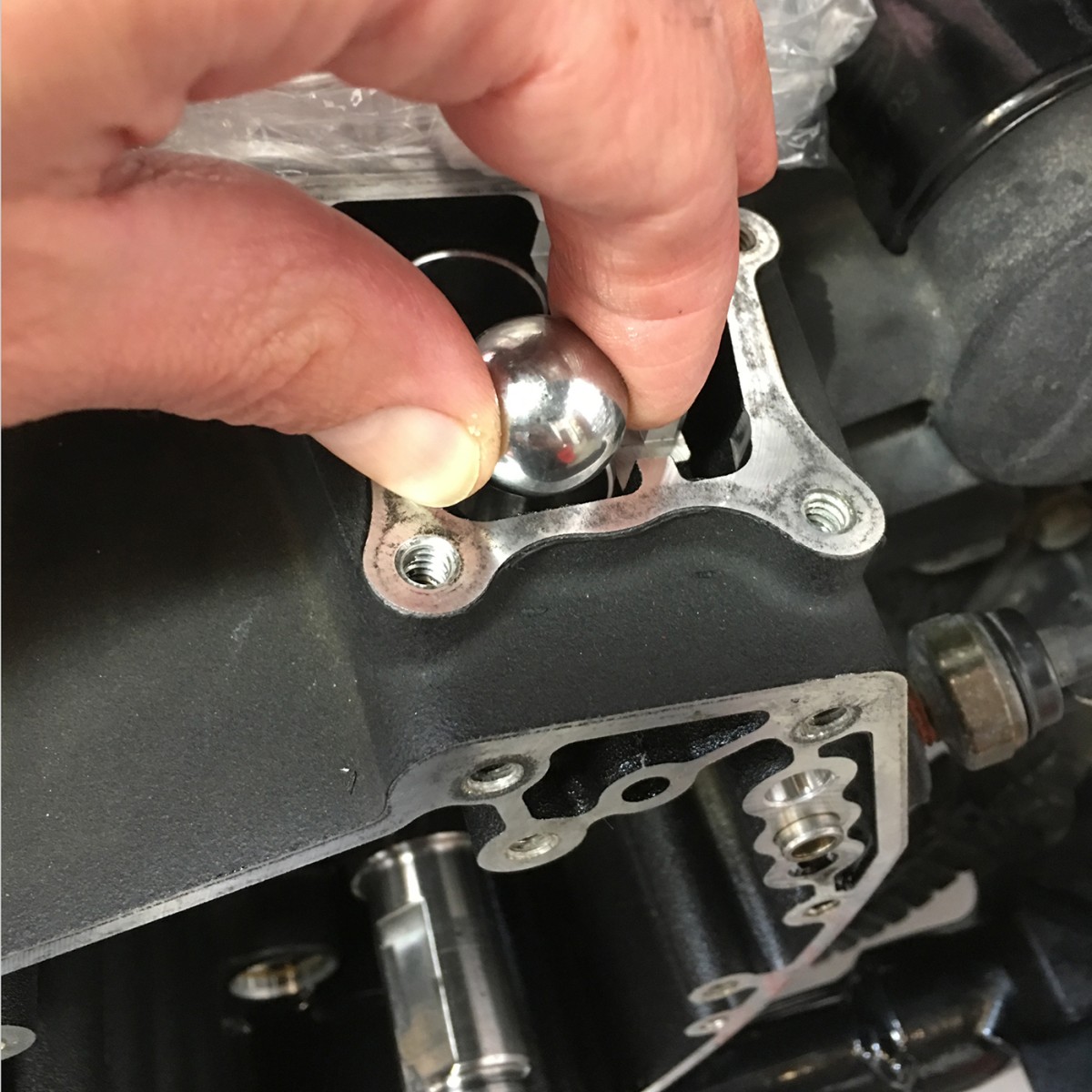

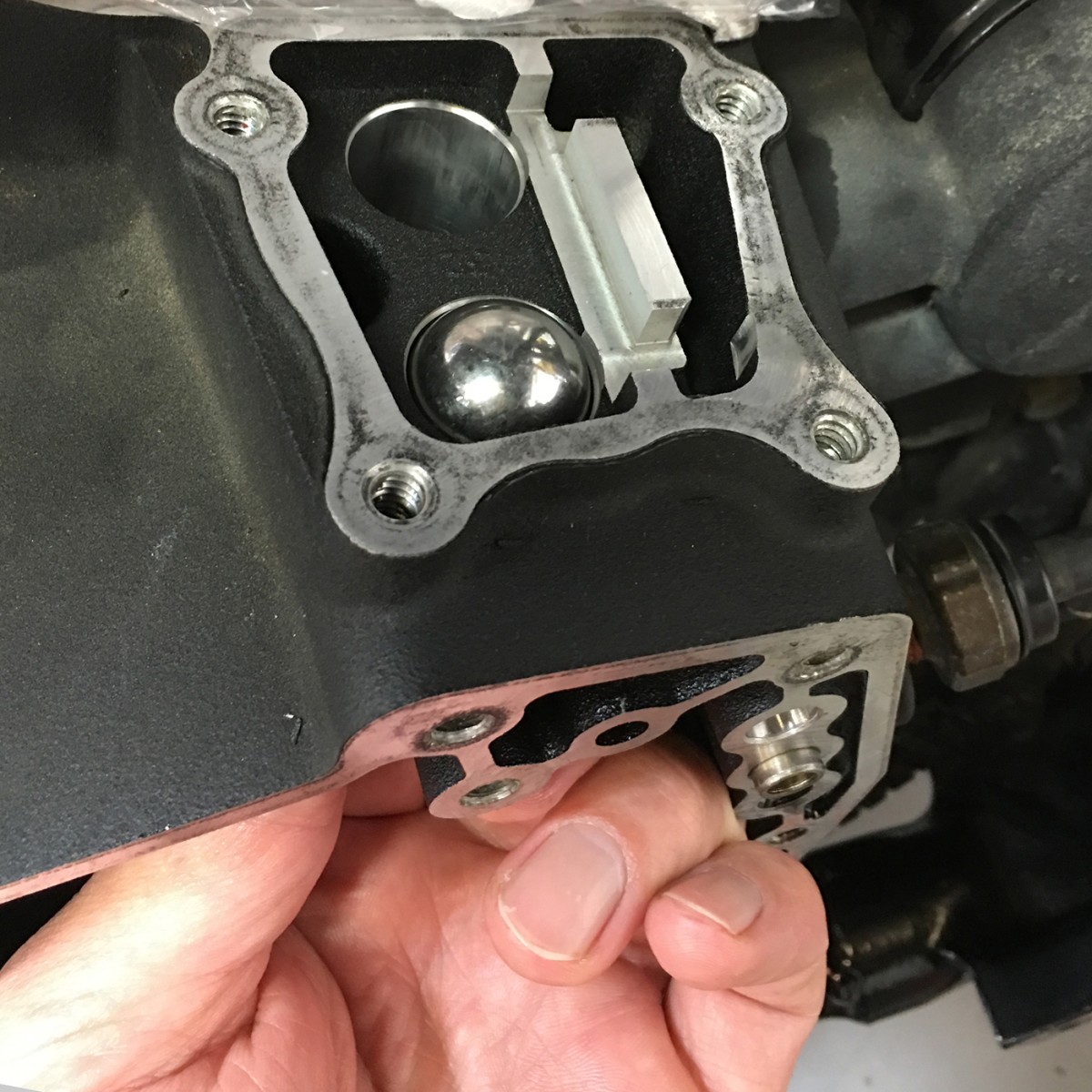

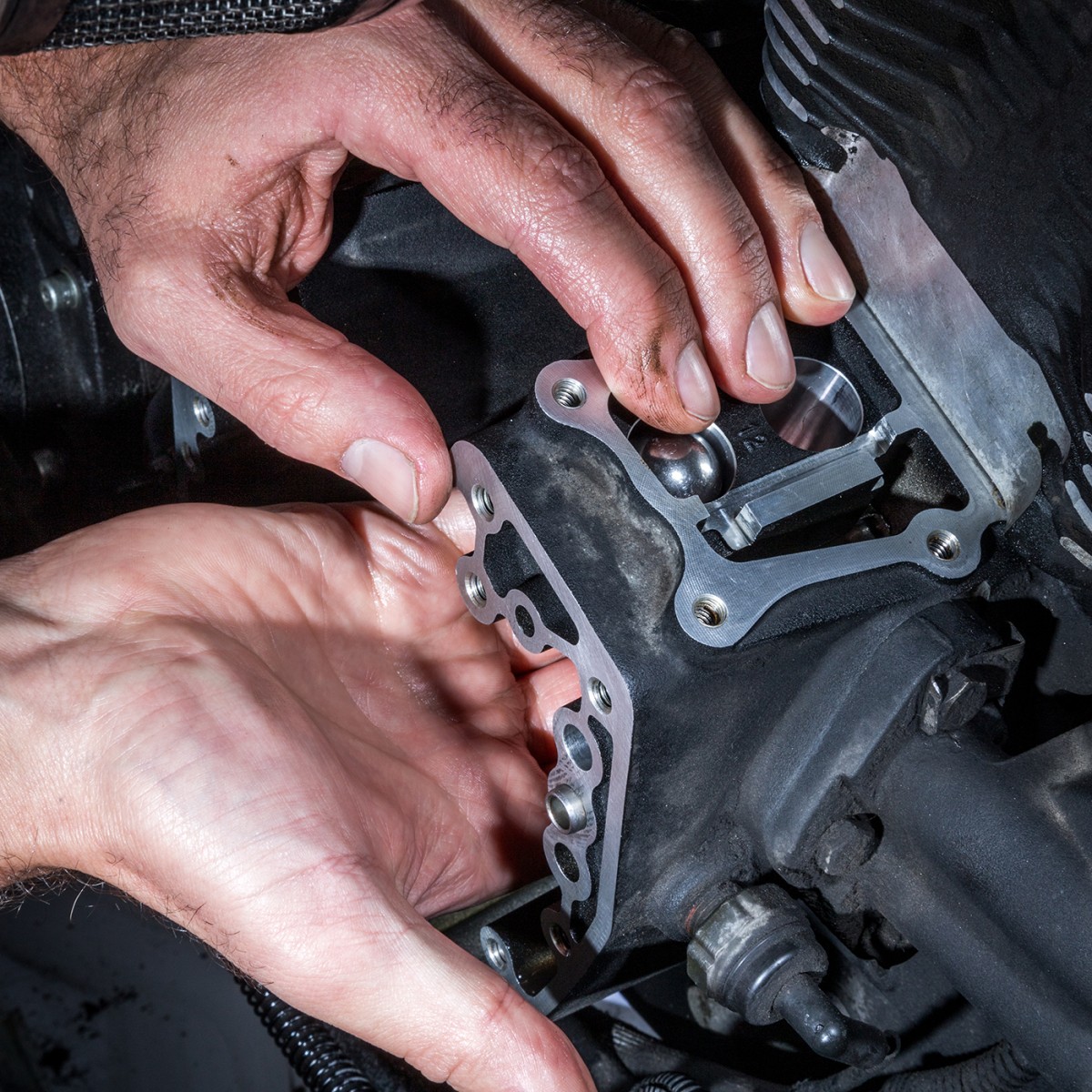

A set of precision ground steel balls allow quick, easy and accurate measurement of lifter bore diameter and bore roundness with no/go gauge measuring balls.
When the lifter to lifter bore clearance is properly matched up the engine is much quieter and the lifters and valvetrain much happier.
Feuling recommends a lifter to lifter bore clearance of 0.001 - 0.0015 for optimum lifter performance. The closer the clearance is to 0.001 the better the lifter will operate due to increased oil pressure at the lifter. Feuling offers oversized RACE LIFTERS in +0.001 and 0.0015 diameters which can be used to tighten up loose lifter bores.
The lifter to lifter bore measurement can be documented on the customer work order and be an additional service offered by the engine builder.

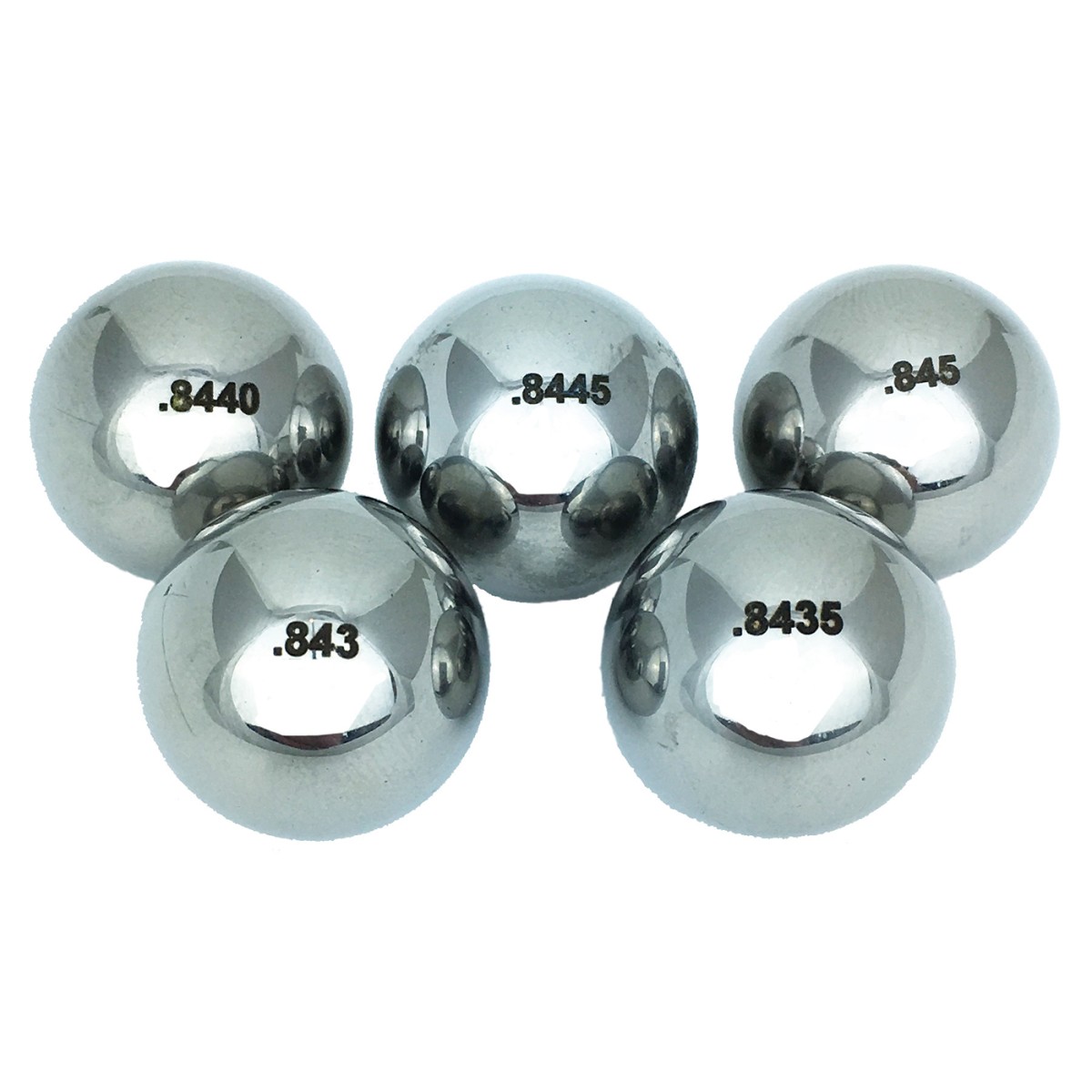

Kit includes ball sizes: 0.8430, 0.8435, 0.8440, 0.8445, 0.8450
#9004 Fits: EVO 84-99, Twin Cam 99-17, XL And Buell 00 - 17 and Milwaukee Eight 17-22 lifter bores, ball Sizes: 0.8430, 0.8435, 0.8440, 0.8445, 0.8450
FITS:
Fits: EVO 84-99, Twin Cam 99-17, XL And Buell 00 - 17 and Milwaukee Eight 17-22 lifter bores, ball Sizes: 0.8430, 0.8435, 0.8440, 0.8445, 0.8450
COUNTRY OF ORIGIN:
USA
