OE+ HYDRAULIC CAM CHAIN TENSIONER CONVERSION KITS - Factory Style Camshafts

T/C 01-06, exc 01 Touring & 06 Dyna, Fits original 00-06 style cams

$799.95
In stock
7090
25284-11

OE+ CONVERSION CAMPLATE HYDRAULIC CAM CHAIN TENSIONER KIT, T/C 01-06, except 01 Touring and 06 Dyna engines, W/O cam sensor

  • FEULING OE+ CONVERSION CAMPLATE HYDRAULIC CAM CHAIN TENSIONER KIT, Twin Cam 01-06, except 01 Touring and 06 Dyna engines, W/O cam sensor. (Delphi Ignition Systems or carbureted)

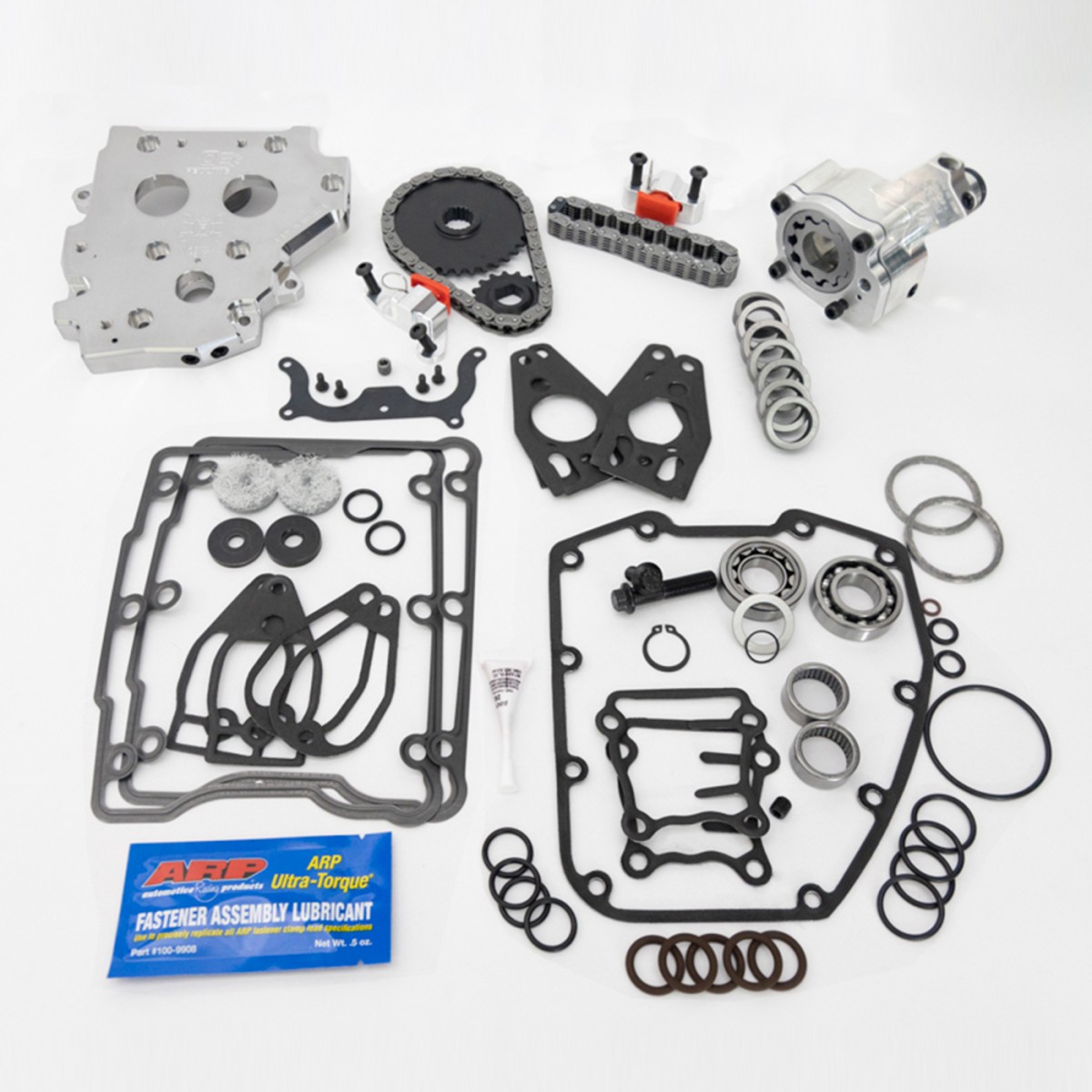

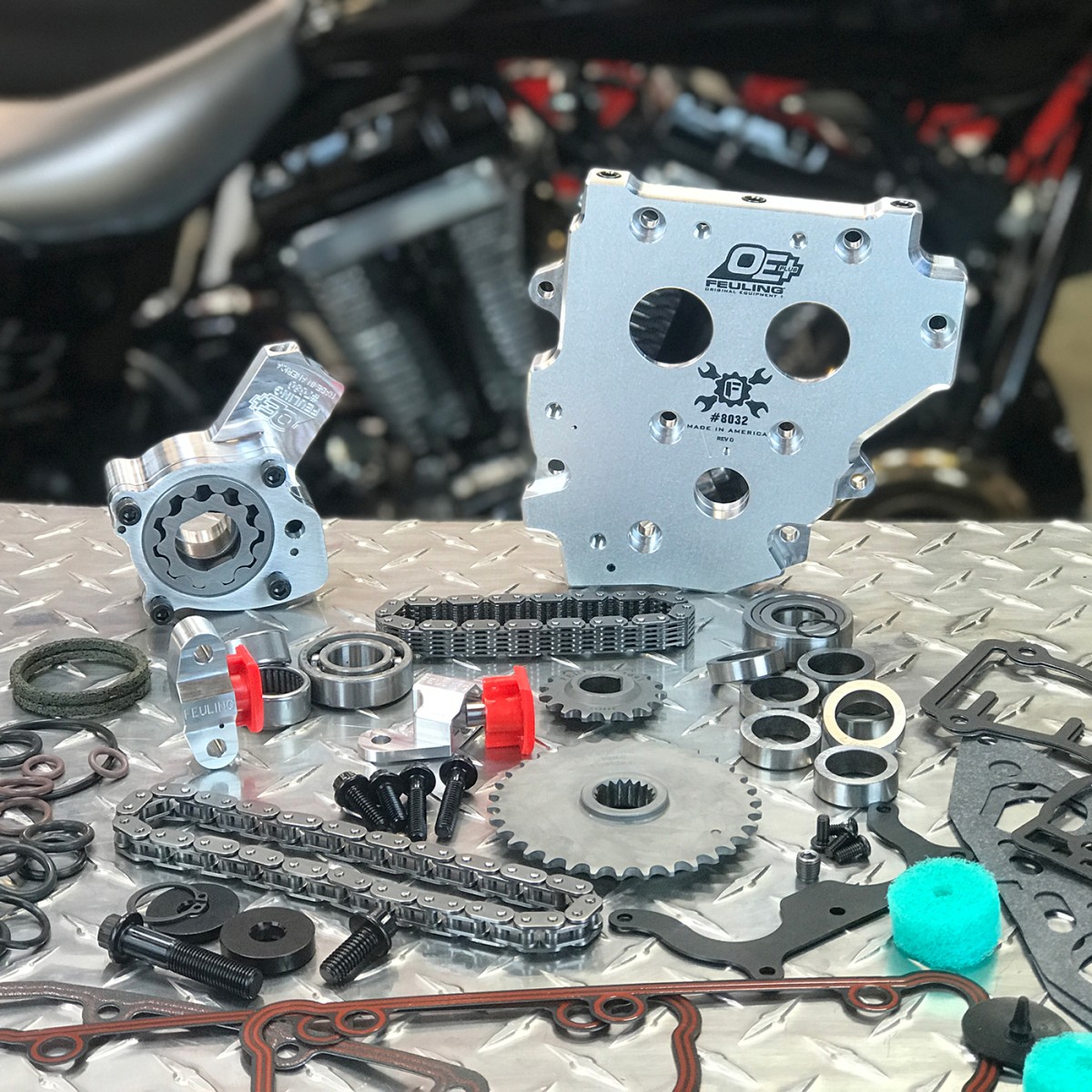

    Kit includes the needed components to upgrade early 99-06 style mechanical spring tensioners cam chain drive systems to the late 07-17 hydraulic cam chain drive system using a hybrid camplate. This kit includes a FEULING OE+ billet oil pump and camplate, FEULINGS billet hydraulic tensioner housings, tensioner pads, cam chains, sprockets, sprocket alignment spacers, TIMKEN/FEULING bearings, needed gaskets, O-rings, ARP cam and crank hardware, Loctite and moly lube.

    Note: Rocker box gasket kit included so the factory one piece pushrods can be reused

    For Delphi equipped ignition system and carbureted engines running the 34 tooth rear cam sprocket without the timing tab.

    Kit designed to run the factory 00-06 style splined chain drive camshafts - Will NOT work on keyway camshafts or with conversion camshafts. Will NOT work on keyway camshafts or with conversion camshafts


    FITS:

    Twin Cam 01-06, except 01 Touring and 06 Dyna engines (Delphi Ignition or carbureted, no cam sensor), Kit designed for factory 00-06 style camshafts


    COUNTRY OF ORIGIN:

    USA


    KIT SKU'S:

    1091, 1092, 2055, 2076, 2078, 3042, 7030, 8001, 8032, 8040, 8061, 8062, 8077K

  • Our Dealers / Distributors Part #
    Drag Specialties 0925-1063
    Neo Factory 021781
    Parts Canada Development Co 0925-1063
    Parts Europe 0925-1063
    Revzilla 1281901
